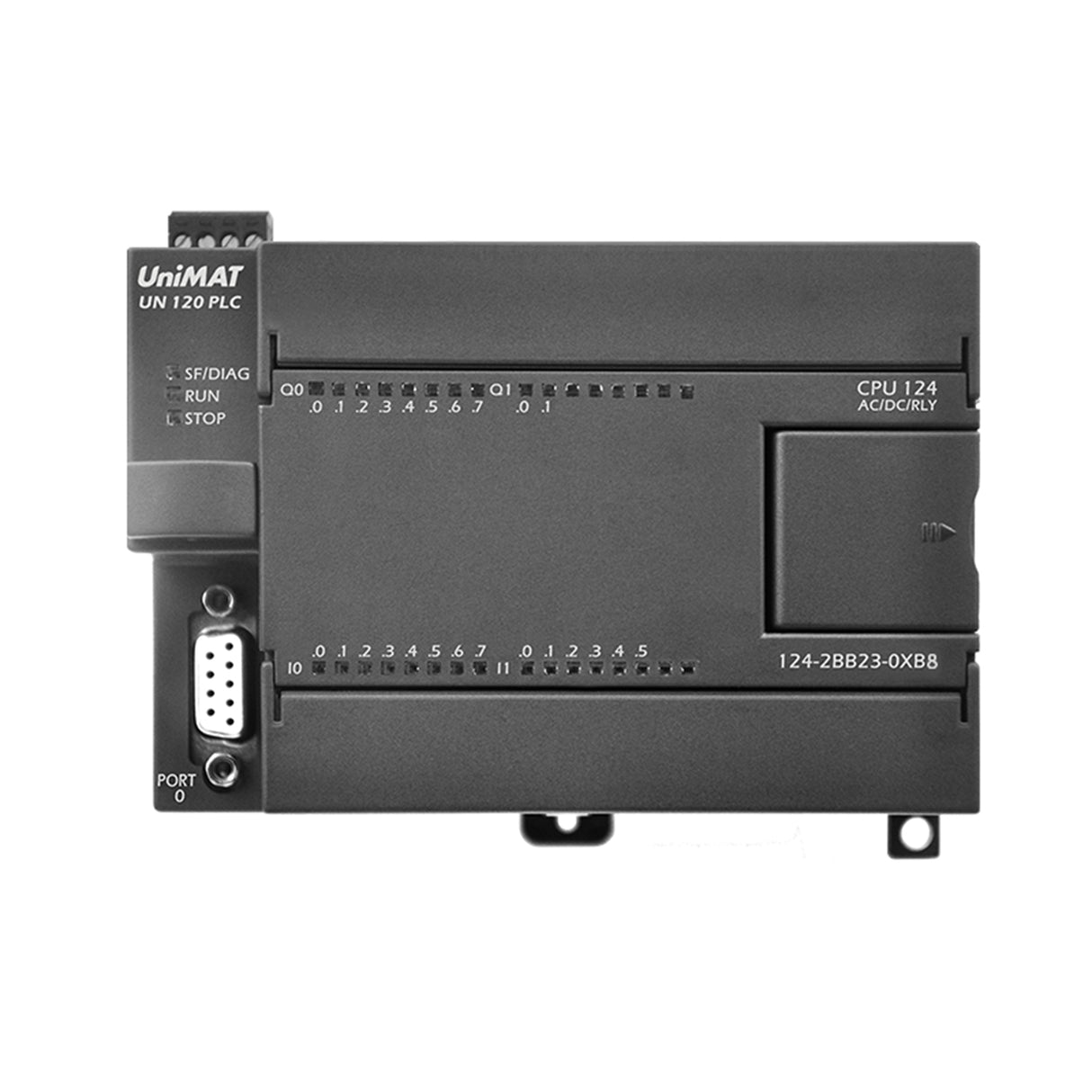

CPU124-2R AC220V power input

model CPU 124-2R AC/DC/RLY 220V input physical properties Dimensions (W*H*D) 120.5*80*62mm Power consumption 7W Memory characteristics program memory 10K data storage 10K I/O characteristics Local digital input 14 inputs Local digital output 10 outputs Digital I/O Image Area 128 (64 in/64 out) Analog I/O image area 32 (16 in/16 out) Maximum allowable expansion I/O modules 4 modules General Features Total number of timers 256 total, 4 1ms, 16 10ms, 236 100ms Total number of counters 256 Power-down memory retention 256 time interruption 2 1ms resolution edge interrupt 4 rising edges and/or 4 falling edges Analog potentiometer 2 x 8-bit resolution clock built-in Integrated communication functions interface 2 PPI bit rate 9.6, 19.2 and 187.5kbps Maximum length of each cable With isolated interruption relays: 187.5kbps up to 1000 meters, 38.4kbps up to 1200 meters without isolated repeaters Maximum number of sites 32 stations per segment, 126 stations per network Maximum number of master stations 32 PPI master mode not support Power characteristics Input voltage 120-250VAC electric shock 20A, 264VAC Insurance 3A 250V slow melting sensor current none bus current 340mA Digital Input Characteristics Local integration of digital input points 14 inputs input type PNP/NPN Rated voltage 24VDC，4mA Maximum continuous allowable voltage 30V DC surge voltage 35VDC, 0.5 seconds logic 1 [minimum] 15VDC 2.5mA logic 0[max] 5VDC 1mA input filter 1-13ms Allowable leakage current [max] 1mA isolation Yes Optical isolation 500VAC for 1 minute high-speed counter 20K single phase Digital output characteristics Local integrated digital output points 10 outputs output type dry contact Rated voltage 24VDC or 250VAC voltage range 5-30VDC 5-250VAC Inrush current (max) 5A 4s 10% duty cycle logic 1 (minimum) - logic 0 (max) - Rated current per point (max) 2A Current rating per common (max) 8A Leakage current [max] - Lamp load [max] 30W DC/200W AC Inductive clamping voltage - On-resistance [contact] 0.2Ω Pulse frequency [max] 1Hz mechanical life cycle 10000000 (no load) Contact life 100000 (rated load) Two outputs in parallel no Environmental parameters Working temperature 0℃～＋60℃ Transport ambient temperature -20℃-80℃ Ambient relative humidity 5~90% Protection class IP20
