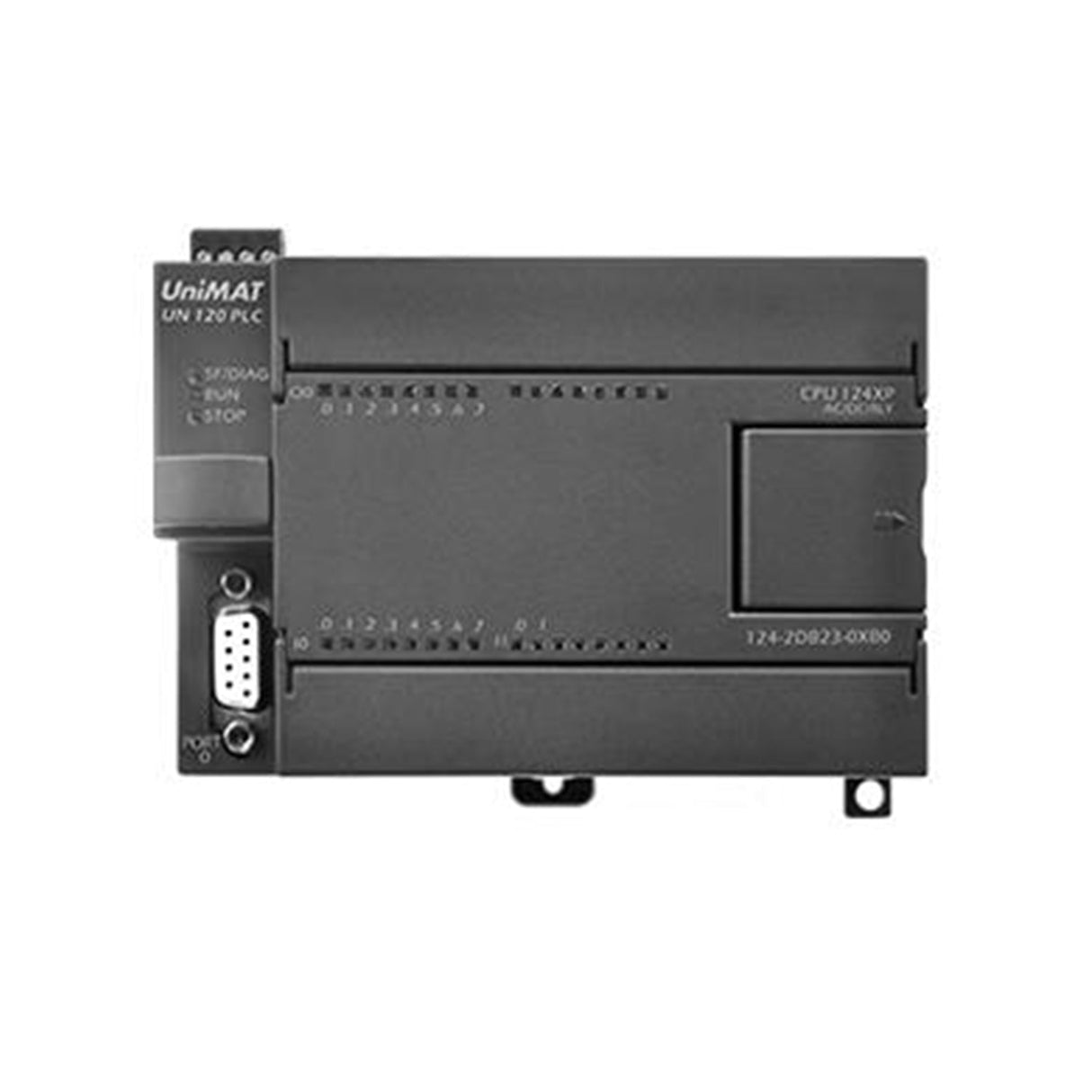

CPU124XP-2R AC/DC/RLY

specifications model CPU 124XP AC/DC/RLY physical properties Dimensions (W*H*D) 120.5*80*62mm power consumption 7W memory characteristics program memory 14K data storage 10K I/O characteristics Local digital input 10 inputs Local digital output 8 output Local analog input 4 inputs Local analog output 2 outputs Digital I/O image area 128 (64 input/64 output) Analog I/O image area 32 (16 input/16 output) Maximum expansion I/O modules allowed 4 modules Pulse catch input 12 General features total number of timers A total of 256, 4 1ms, 16 10ms, 236 100ms total number of counters 256 Memory storage power-down retention 256 time break 2 x 1ms resolution edge interrupt 4 rising and/or 4 falling edges Analog Potentiometer 2 x 8-bit resolution clock built-in Integrated communication functions interface 2 RS-485 ports (including 1 standard PPI communication port) PPI bit rate 9.6, 19.2 and 187.5kbps Maximum length of each cable segment Using isolated interrupt relay: 187.5kbps up to 1000m, 38.4kbps up to 1200m without isolated repeater Maximum number of stations 32 stations per segment, 126 stations per network Maximum number of master stations 32 PPI master mode not support Power Characteristics Input voltage 120~250V AC electric shock 20A at 264V AC Digital Input Characteristics Local integrated digital input points 10 inputs input type PNP/NPN Rated voltage 24VDC，4mA Maximum continuous allowable voltage 30V DC surge voltage 35VDC, 0.5 seconds logic 1 [minimum] 15VDC 2.5mA logic 0 [maximum] 5VDC 1mA input filter 1-13ms Allowable leakage current [maximum] 1mA isolation yes Optical isolation 500VAC for 1 minute high speed counter 20K single phase Digital output characteristics Local integrated digital output points 8 output output type dry contact Rated voltage 24VDC or 250VAC voltage range 5-30VDC 5-250VAC Inrush current (maximum) 5A 4s 10% duty cycle logic 1 (minimum) - logic 0 (maximum) - Rated current per point (maximum) 2a Rated current (max) per common 8A Leakage current [maximum] - Lamp Load [Max] 30W DC/200W AC Inductive clamping voltage - On resistance [contact] 0.2Ω Pulse frequency [maximum] 1Hz Mechanical Life Cycle 10000000 (no load) Contact life 100000 (rated load) Two outputs in parallel no Analog Input Characteristics Local integrated digital output points 4 inputs Analog input byte single ended voltage range ±10V Data Word Format, Full Scale Range -32000 to +32000 DC input impedance >100KΩ input voltage 30VDC resolution 11 bits plus 1 sign bit LSB value 4.88mV isolation none precision ± 2.5% of full scale [worst case 0 to 55 degrees] ± 1.0% of full scale [typically 25 degrees] repeatability ± 0.05% of full scale Analog to Digital Conversion Time 125ms convert bytes SAR step response Maximum 250ms noise suppression Typical -40dB@50Hz Analog Output Characteristics Local integrated digital output points 2 outputs signal range Voltage 0-10V Current 0-20mA Data Word Format Full Scale Range 0 to +32767 Data Word Format Full Scale Range 0 to +32000 resolution full scale 12 bits LSB value Voltage 2.44mA Current 4.88uA isolation none precision worst case Voltage output ± 2% of full scale Current output ± 3% of full scale typical Voltage output ± 1% of full scale Current output ± 1% of full scale build time Voltage output 50us Current output 100us Maximum output drive Voltage output>=5000Ω minimum Current output
