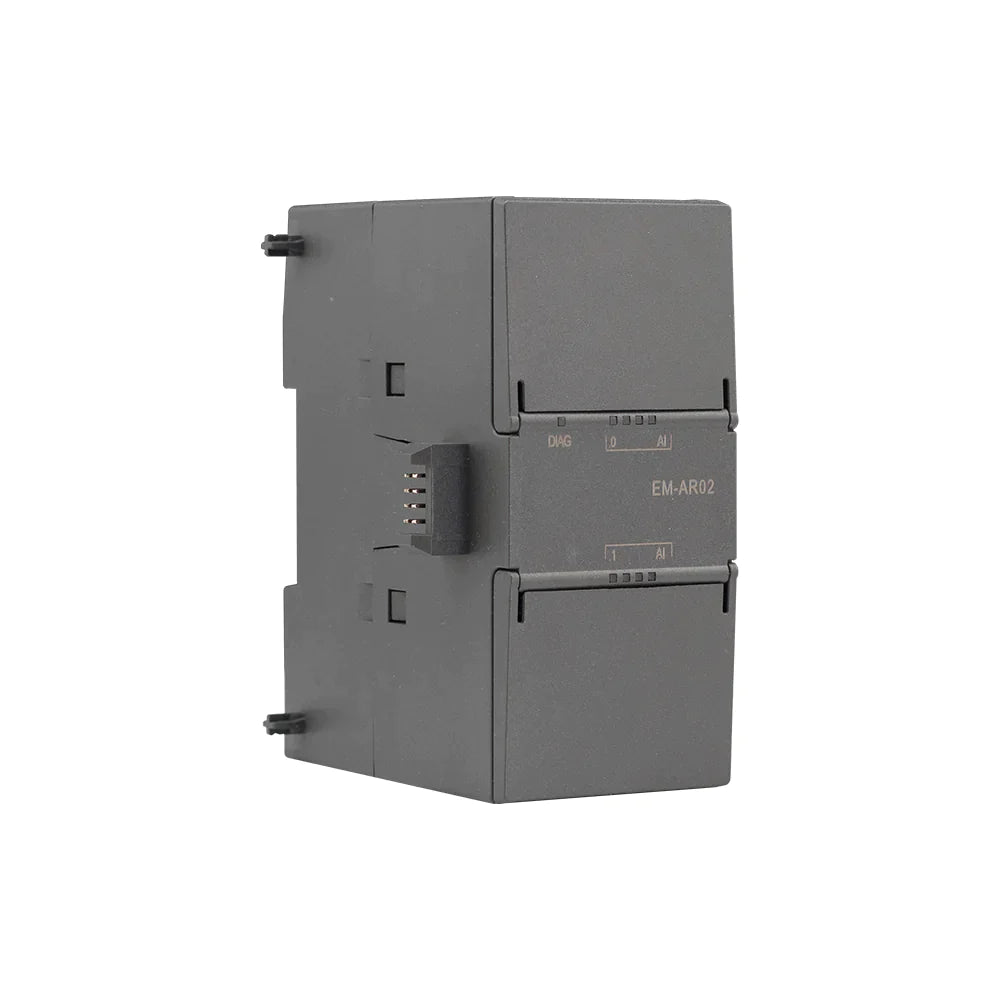

EM AR02

model EM AR02 order number UN 288-3AR02-0AA0 conventional Dimensions W x H x D (mm) 45 x 100 x 81 weight 148.7g power consumption 1.5W Current Consumption (SM Bus) 80 mA Current consumption (24 V DC) 40 mA analog input 2 Input channels type RTD and resistor values for module reference ground Resolution Temperature Resistance 0.1 ˚ C / 0.1 ˚ F15 bits + sign bit maximum withstand voltage ±35V noise suppression 85dB, 10Hz/50Hz/60Hz/400Hz common mode rejection > 120dB impedance ≥ 10 MΩ isolation 500V AC Channel-to-channel isolation - precision Please refer to the RTD sensor selection table repeatability ±0.05% FS Maximum Sensor Power Consumption 0.5mW Measuring principle integral Module update time Please refer to the noise reduction selection table Cable length (maximum) Maximum length to sensor 100 m overflow/underflow √ Open circuit (current mode only) √ 24 V DC low voltage √
