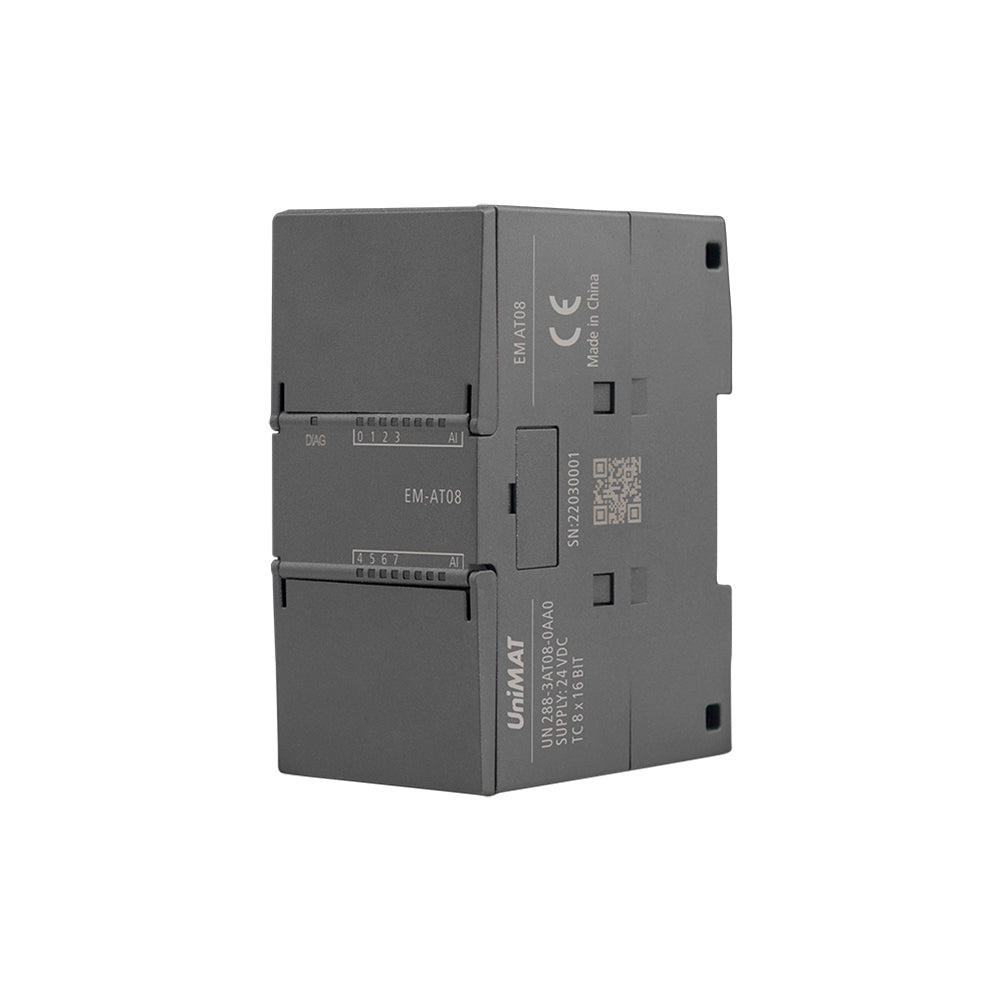

EM AT08

model EM AT08 order number UN 288-3AT08-0AA0 conventional   Dimensions W x H x D (mm) 45×100×81 weight 125g power consumption 1.5W Current Consumption (SM Bus) 80 mA Current consumption (24 V DC) 40 mA analog input   Input channels 8 Resolution    temperature resistance 0.1 ˚C / 0.1 ˚F 15    digits + sign maximum withstand voltage ±35V noise suppression     85 dB for selected filter setting (10 Hz, 50 Hz, 60 Hz or 400 Hz) common mode rejection >120 dB at 120 V AC impedance ≥ 10 MΩ Isolate    field side from logic side    field side from 24 V DC side    24 V DC side from logic side 500 VAC    500 VAC    500 VAC Channel-to-channel isolation - precision Please refer to the thermocouple selection table repeatability ± 0.05 % FS Measuring principle Integral type Module update time See filter selection table Cold junction temperature error ± 1.5 ° C Cable length (maximum) Maximum length to sensor is 100 m Cable resistance 100Ω max. diagnosis   overflow/underflow √ Open circuit (current mode only) √ 24 V DC low voltage √
