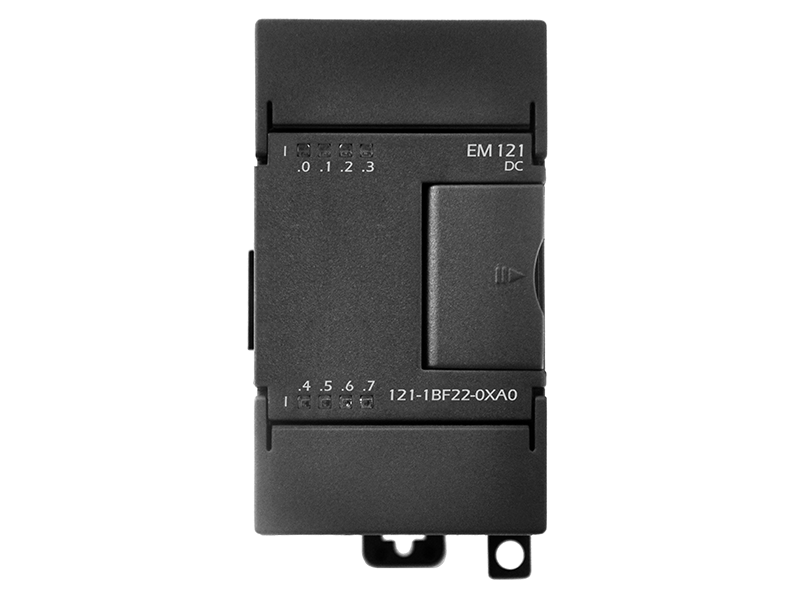

EM121 8DI 24VDC

From bus current consumption 40mA Power loss 2W Number of digital inputs 8 Signal input type· PNP/NPN Input voltage range 24VDC,4mA Maximum input voltage 30V DC Surge voltage 35V DC,0.5s Logic 0 signal 0~5V DC Logic 1 signal 15~30V DC Input delay(max) 4.5ms Optical isolation(Galvanic) (Field Side to Logic) 500 V AC for 1 minute Premissible leakage current(Bero) 1mA Cable Length 500m(Shielded ) 300m(Unshielded) Dimensions(W x H x D)(mm) 46×80×62
