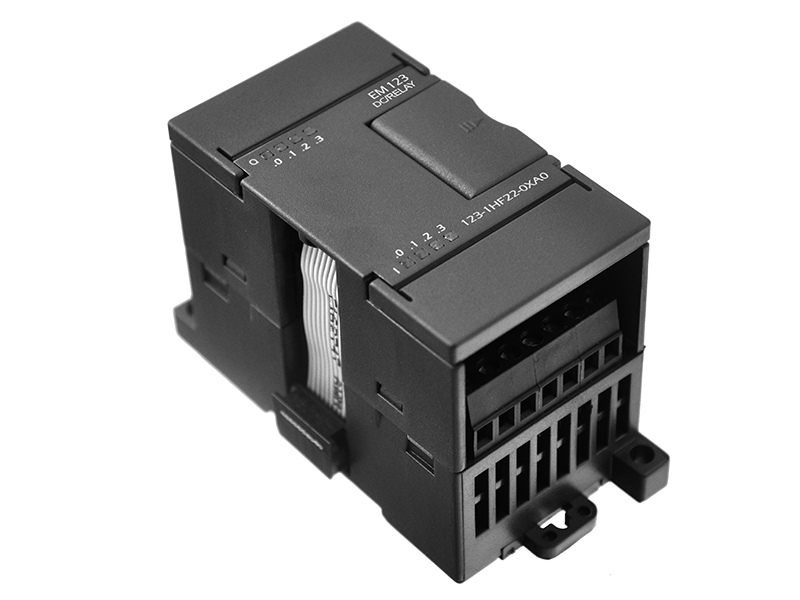

EM123 4DI/4DO Relay

Product Description 4DI,24VDC,/4DO, 24 VDC/250VAC, Relay isolation with high immunity. From bus current consumption 40mA Power loss 2W Input Features   Number of digital inputs 4 Input voltage 24V DC,4mA Logic 0 signal 0~5V DC Logic 1 signal 15~30V DC Maximum Input Delay Time 4.5ms Signal input type· PNP/NPN Optical isolation(Galvanic) (field to logic) 500 VAC for 1 minute Cable Length (Shielded) 500m Cable Length (unshielded) 300m output Features   Number of digital outputs 4 Output type Relay Isolation Relay Output voltage 24V DC or 250V AC Output voltage range 5~30V DC/20~250V AC Output Current 2.0A Lamp load 30W DC/200W AC Lifetime mechanical 10,000,000 Lifetime contacts(Rated load voltage 100,000 Cable Length (Shielded) 500m Cable Length (unshielded) 150m Dimensions(W x H x D)(mm) 46×80×62
