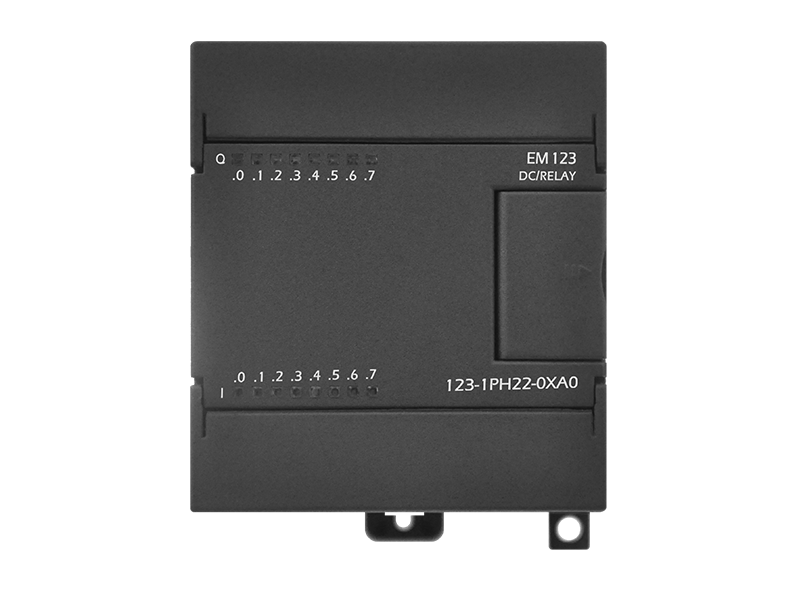

EM123 8DI 24V/8DO Relay

Product Description 8DI,24VDC/8DO, 24 VDC/250VAC, Relay isolation with high immunity. From bus current consumption 80mA Power loss 3W Digital Input Specification   Number of digital inputs 8 Input voltage 24 VDC,4mA Logic 0 signal 0~5 VDC Logic 1 signal 15~30 VDC Maximum Input Delay Time 4.5ms Signal input type· PNP/NPN Optical isolation(Galvanic) 500 V AC for 1 minute Cable Length (Shielded) 500m Cable Length (unshielded) 300m Digital Output Specification   Number of digital outputs 8 Output type Relay Isolation Relay Output voltage 24 VDC Output voltage range 5~30 VDC/20~250V AC Output Current 2.0A Lamp load 30W DC/20~250W AC Lifetime contact mechanical 10,000,000 Lifetime contact mechanical (rated load voltage) 100,000 Cable Length (Shielded) 500m Cable Length (unshielded) 150m Dimensions(W x H x D)(mm) 71.2×80×62
