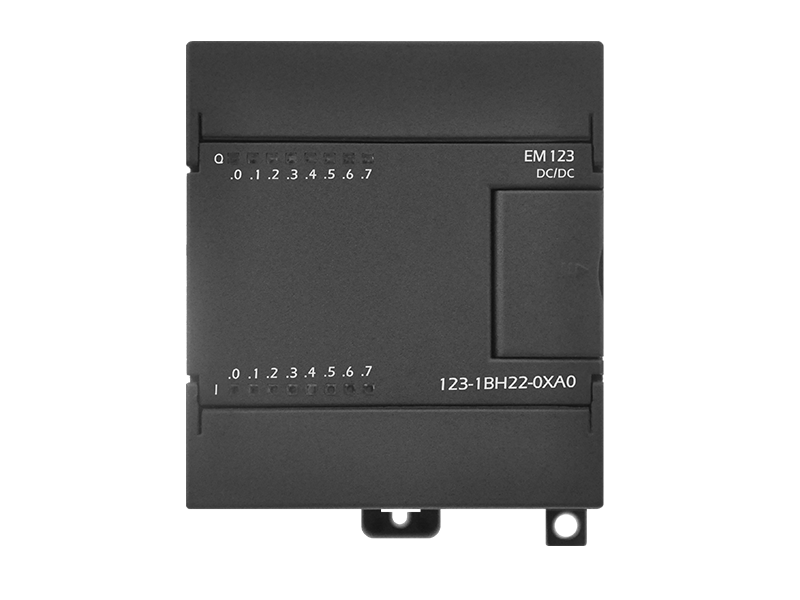

EM123 8DI 24V/8DO Transistor

Power consumption   ·From +5V DC backplane bus 80mA ·Power loss 3W   Number of digital contact 8 Rated voltage 24V 4mA ·for “0”signal 0~5V DC ·for “1”signal 15~30V DC Input delay(Max) 4.5ms Signal input type PNP/NPN Isolation tested for contact 500VAC,1Min Cable length(shielded) 500m Cable length(unshielded) 300m   Number of digital contact 8 Output type Transistor Isolation tested for contact Optocoupler Rated voltage 24 VDC Voltage range 20.4~28.8VDC Rated voltage 0.75A Lamp load 5W Cable length(shielded) 500m Cable length(unshielded) 150m   Dimensions(W x H x D)(mm) 71.2×80×62 weight 145g
