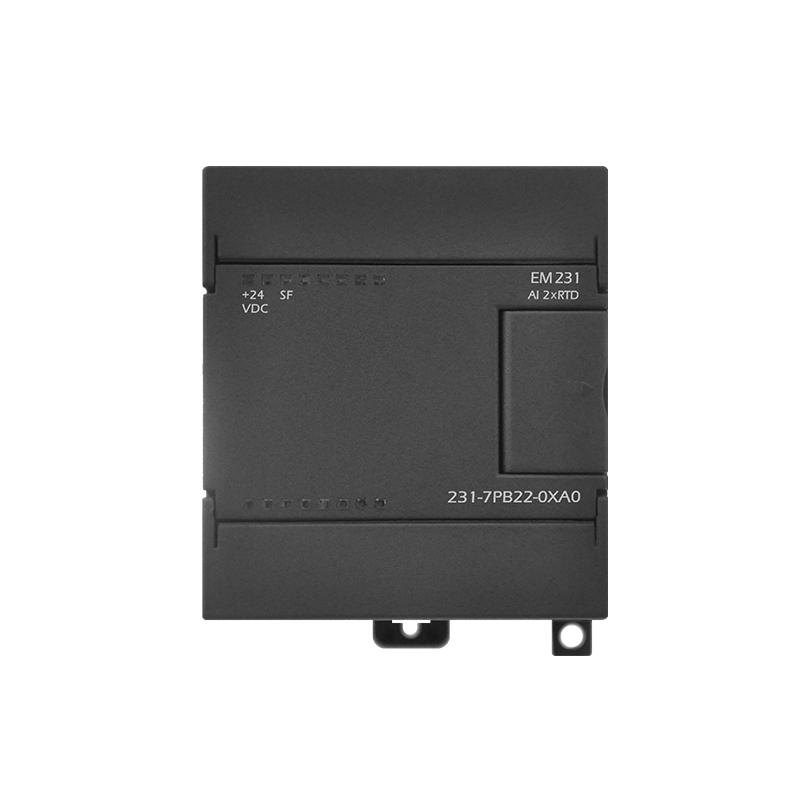

EM231 2 inputs,RTD

Product Description 2AI;RTD temperature measurement modules; Resolution:16bits Optical isolation; High immunity;stable From bus current consumption 45mA From L+ current consumption 20mA Power loss 1W Number of analog inputs 2 Input type· Module ground referenced RTD Common-mode rejection >120dB@120V AC Wire loop resistance(Max) 20 Ω Module update time 405ms Data word format Resistance:0~+27648 Ω Input range RTD: Pt100,Pt200,Pt500,Pt1000,Pt10000,Ni100 Ni120,Ni1000,Cu(9.035) Resistance: 150Ω, 300Ω,600Ω Measuring principle Sigma→delta Resolution 15+1 Sign bit Basic error 0.1%FS Isolation(field to logic) >500V 24VDC supply voltage range 20.4~28.8V DC Dimensions(W x H x D)(mm) 71.2×80×62
