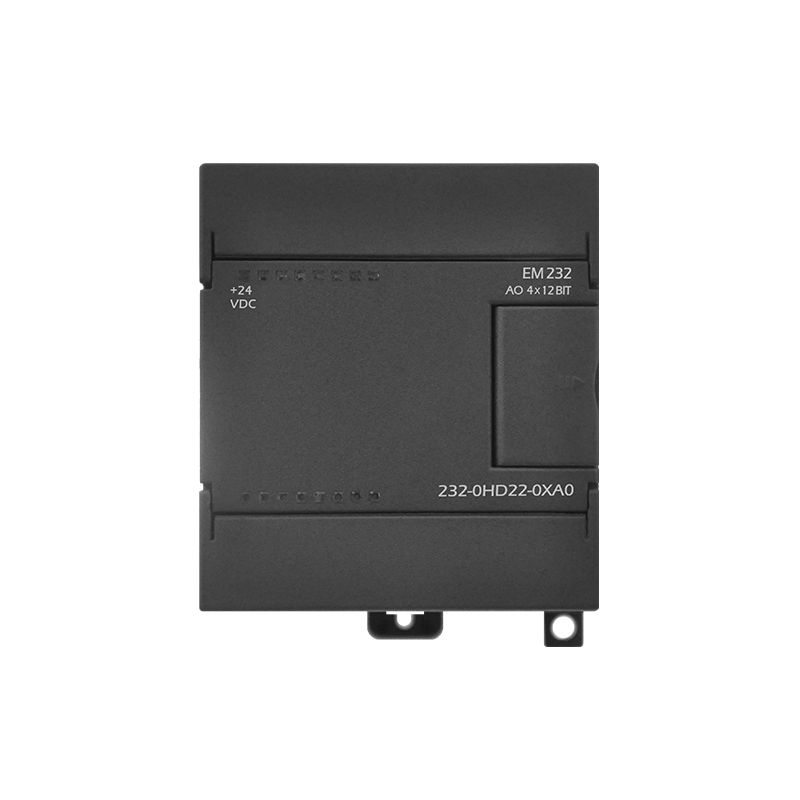

EM232 4AO x12bits

Product Description 4AO;Resolution:16bits; 12 bits resolution voltage output; 11 bits resolution current output Input Feature   From bus current consumption 22mA From L+ current consumption 92mA Power loss 2.5W Number of analog Input - Signal input type - Maximum input voltage - Maximum input current - Voltange input range: Unipolar - Voltange input range: Bipolar - current input range - Resolution - Bipolar,full-scale range - Unipolar, full-scale range - Analog to digital conversion time - Output Feature   Number of analog Input 4 Input voltage range -10~+10V Input current range 0~20mA Load inpedance   ·for voltage outputs Min:5KΩ ·for current outputs Max:0.5KΩ Resolution 12 bits voltage output; 11 bits current output Data word format   ·Displayable:voltage output -32，000~+32，000 ·Displayable:current output 0~32，000 Basic error ±0.5% of full range Dimensions(W x H x D)(mm) 71.2×80×62
