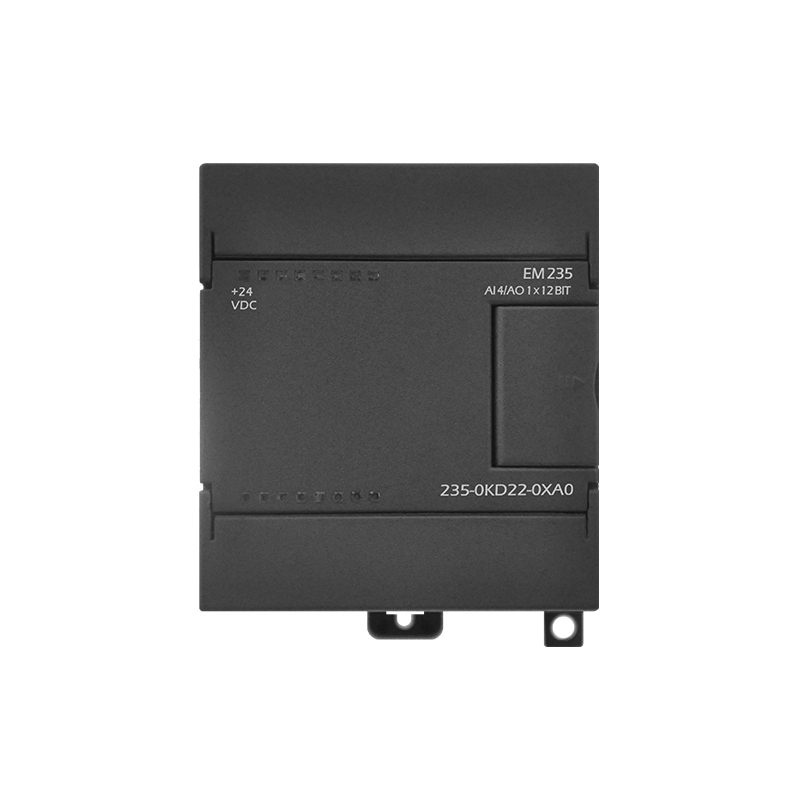

EM235 4AI/1AOx12bits

Product Description 4AI,1AO; 12 bits resolution voltage output; 11 bits resolution current output Input Feature   From bus current consumption 30mA From L+ current consumption 60mA Power loss 2W Number of analog Input 4 Signal input type Differential Maximum input voltage 30V Maximum input current 32mA Voltange input range: Unipolar 0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V Voltange input range: Bipolar ±1V, ±2.5V, ±5V, ±10V ±25mV, ±50mV, ±100mV, ±250mV, ±500mV, current input range 0~20mA, Resolution 12bits Bipolar,full-scale range 0~32,000 Unipolar, full-scale range -32，000~+32，000 Analog to digital conversion time
