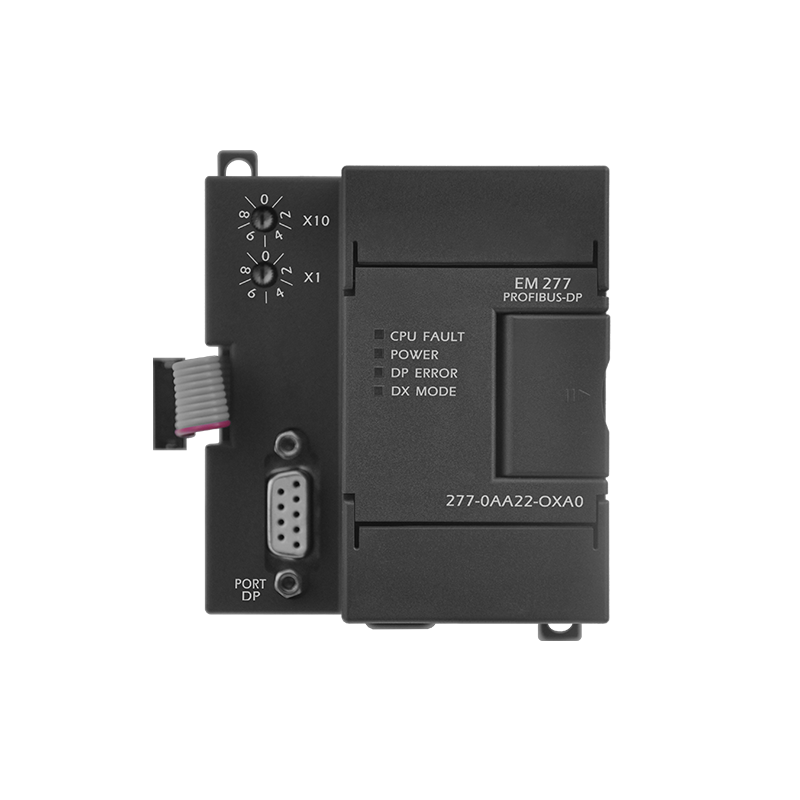

EM277 PROFBUS-DP Module

Description Be used in distributed I/O system with PROFIBUS-DP interface Optical isolation, Stable Module feature Port 1 Port Type RS-485 Protocol PROFIBUS-DP PROFIBUS-DP Speed 9.6, 19.2, 45.45, 93.75, 187.5 and 500Kbps 1.5, 3, 6 and 12Mbps Net Ability Sub-station address setting 0 to 99（setting by rotary swtich） Max Sub-staion per Net section 32 Max Sub-station per Net 126, but just 99 EM277 Sub-station Cable Length Below 93.75kbps 1200 meters 187.5kbps 1000 meters 500kbps 400 meters 1-1.5Mbps 200 meters 3-12Mbps 100 meters 24V DC input power Voltage range 20.4-28.8V DC MAX. Current cosume (24VDC) 70mA Isolation( Input power with Logic circuit) 500V Power Supply consume 5V DC consume on BUS 150mA Dimension (length x width x hight) 71 x 80 x 62
