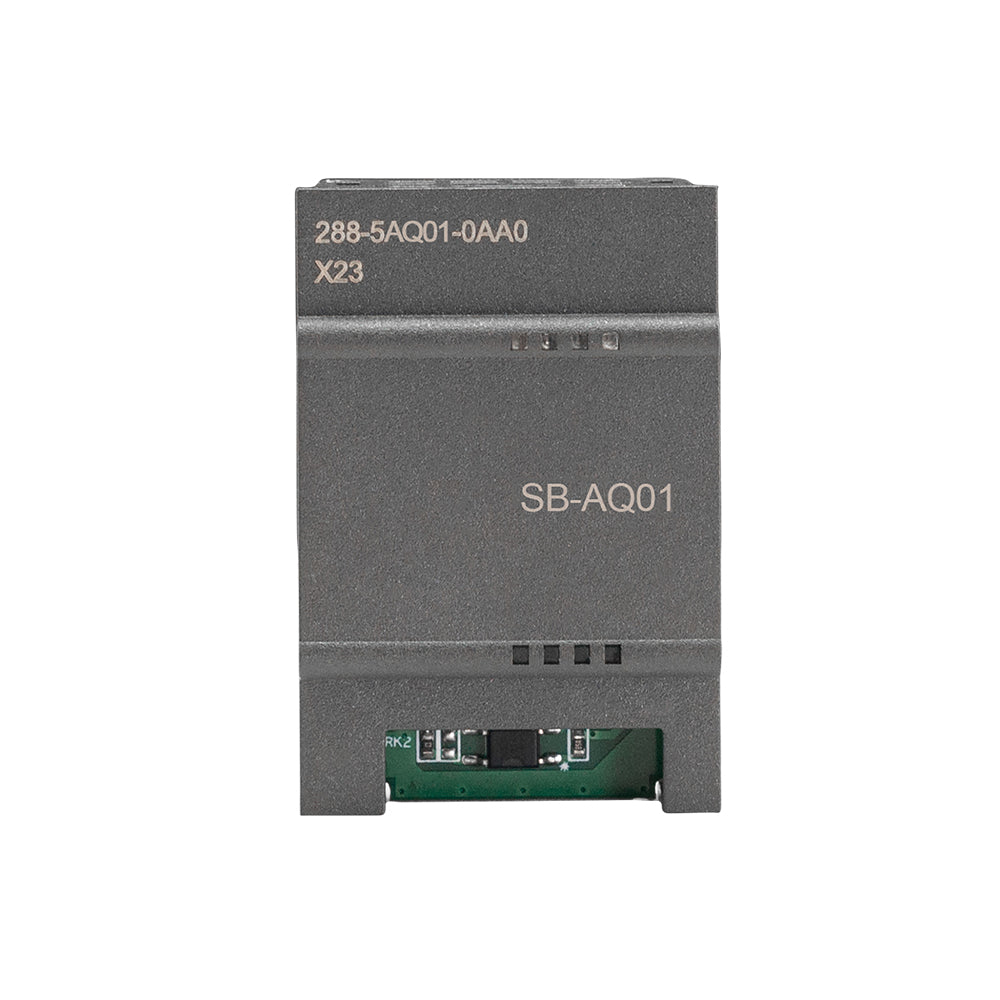

SB AQ01

model SB AQ01 Order number (MLFB) UN 288-5AQ01-0AA0 conventional Dimensions W x H x D (mm) 35 x 52.2 x 16 weight 17.4 g power consumption 1.5W Current Consumption (SM Bus) 15 mA Current consumption (24 V DC) 40 mA (no load) analog output output points 1 type voltage or current scope ±10V，0~20mA resolution Voltage: 11 bits + sign bit    Current: 11 bits Full-Scale Range (Data Words) -27.648 ~ 27.648（-10V ~ 10V）    0 ~ 27.648（0~20mA） load impedance Voltage: ≥ 1000 Ω    Current: ≤ 600 Ω Output status in STOP mode previous value or replacement value Isolation (field side and logic side) none Cable length (maximum) 10m, shielded twisted pair diagnosis overflow/underflow √
