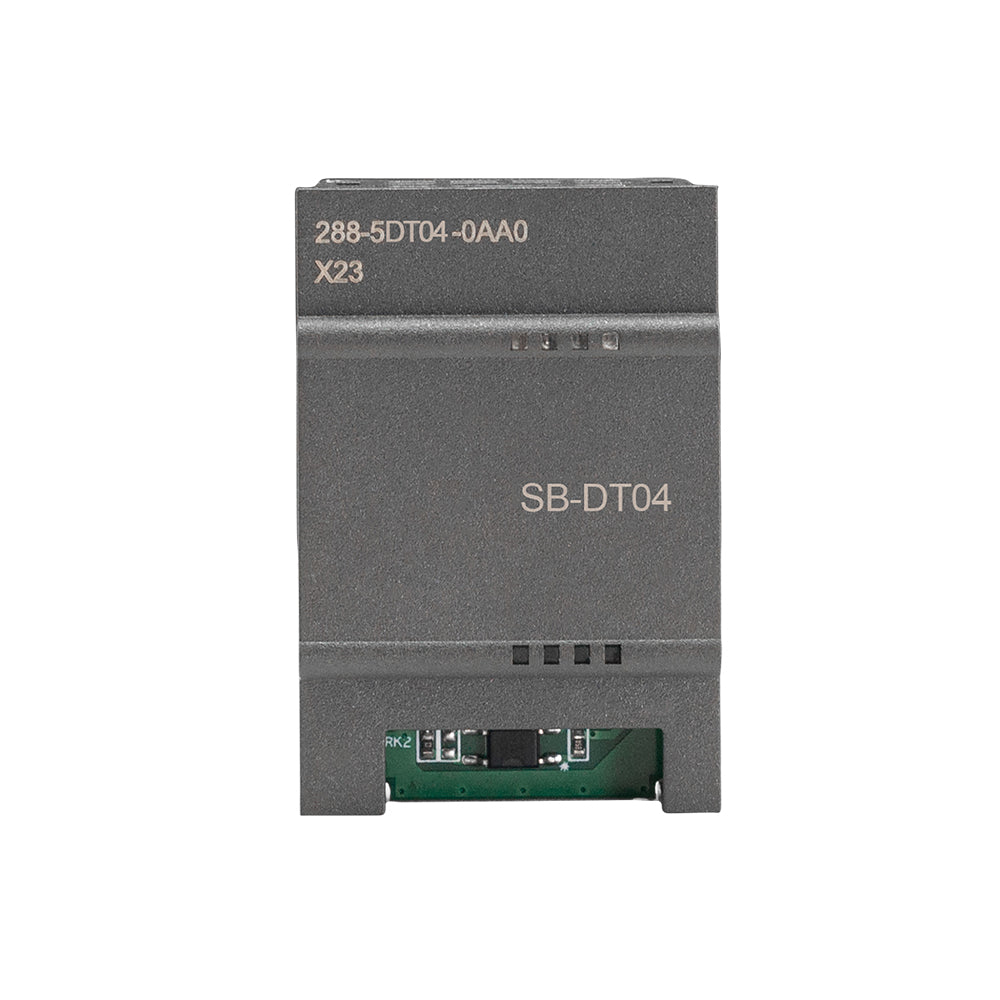

SB-DT04

model SB DT04 order number UN 288-5DT04-0AA0 conventional Dimensions W x H x D (mm) 35   x 52.2 x 16 weight 18.1   g power consumption 1.0W Current Consumption (SM Bus) 50 mA Current consumption (24 V DC) 4 mA per point input used digital input Enter points 2 type Sink (IEC Type 1 Sink) Rated voltage 24 V DC at 4 mA, nominal Allowable continuous voltage 30 V DC max. surge voltage 35 V DC for 0.5 s Logic 1 signal (minimum) 15V DC at 2.5mA Logic 0 signal (maximum) 5V DC at 1mA Isolation (field side and logic side) 500 V AC for 1 min isolation group 1 filter time     0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8 µs individually selectable per channel 0.2, 0.4, 0.8, 1.6, 3.2,    6.4 and 12.8 ms Simultaneously connected inputs 2 cable length 500 m (shielded), 300 m (unshielded) digital output output points 2 output type Solid State - MOSFET (Source) voltage range 20.4   ~ 28.8 V DC Logic 1 signal at maximum current 20 V DC minimum Logic 0 signal at maximum current 0.1 V DC max. Rated current per point (maximum) 0.5   A lamp load 5W On-state contact resistance 0.6Ω max. Leakage current per point 10 μA max Inrush current 5 A for a maximum duration of 100 ms overload protection none Isolation (field side and logic side) 500 V AC for 1 min isolation group 1 current per common 1   A Inductor Clamp Voltage L + - 48 V, 1 W loss switch delay Off-to-on max. 2 μs    On-off max. 10 μs Output status in STOP mode previous value or replacement value (default is 0) Simultaneously connected outputs 2 Cable length (maximum) 500 m (shielded), 150 m (unshielded)
