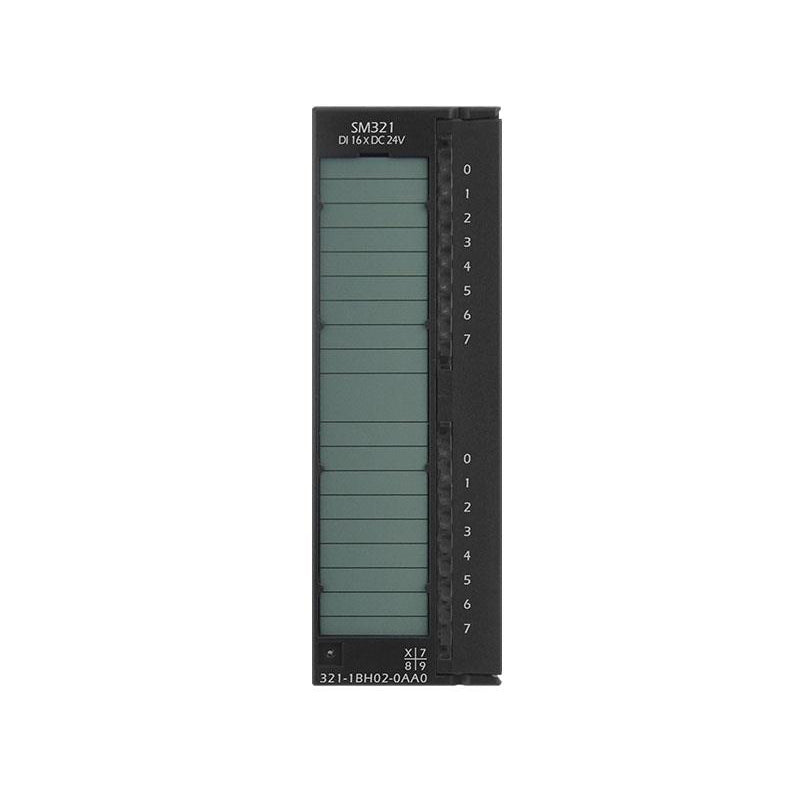

SM321 16DI

SKU: 9be9c8874a6a
En Stock

SM321 16 Digital Input Module 300 PLC equivalent of Siemens S7 - 3001). SM321 16DI ;2). Compatible with Siemens 6ES7321-1FH00-0AA0;3). Analog Input  module ;4). Could connect with Siemens 300 CPU ;5). 3-year warranty ;UN 300 SeriesDigital Expansion ModulesSM321 16 inputs,24V DCUN 321-1BH02-0AA0SM321 16 inputs,230V ACUN 321-1FH00-0AA0SM321 32 inputs,24V DCUN 321-1BL00-0AA0SM322 8 outputs,24V DC,2AUN 322-1BF01-0AA0SM322 16 outputs,24V DC,0.5AUN 322-1BH01-0AA0SM322 16 outputs,Relay,2AUN 322-1HH01-0AA0SM322 32 outputs,24V DC,0.5AUN 322-1BL00-0AA0SM322 16 inputs,24V DC/16 outputs,24V DC,0.5AUN 323-1BL00-0AA0UN 300 SeriesAnalog Expansion ModulesSM331 8 inputs,Voltage/Current×13 bitsUN 331-1KF01-0AB0SM331 8 inputs,Voltage/CurrentUN 331-7KF02-0AB0SM331 8 inputs,RTDUN 331-7PF01-0AB0SM331 8 inputs,ThermocoupleUN 331-7PF11-0AB0SM331 4 outputs,Voltage/Current×12 bitsUN 332-5HD01-0AB0SM331 8 outputs,Voltage/Current×12 bitsUN 332-5HF00-0AB0UN 300 Series CommunicationInterface ModulesIM 153 PROFIBUS-DPUN 153-1AA03-0XB0UN 300 SeriesDP/MPI USB adapterUN 972-0CB20-0XA0RS232-MPI adapterUN 972-0CA23-0XA0Ethernet -MPI adapterUN 972-0CE20-0XA0UN 300 Series PowerPS 307 Power,5AUN 307-1EA01-0AA0PS 307 Power,10AUN 307-1KA01-0AA0

Cotizar Ahora

¿Necesitas más información?

Nuestro equipo técnico está listo para ayudarte con cualquier consulta.

Model SM321  16DI NPN Order Number UN 321-1BH02-0AA0 Product Description 16DL24V DC High immunitystable Power consumption From bus curent consumption 17mA Power loss 3.5W Number of digital inputs 16 Cable Length 1,000m(Shielded),600m(Unshielded Input voltage Rated value 24V DC "0"for  signa -30~5V DC "1"for  signa 13~30V DC Frequency range Input current 7mA Input delay From"0"to"1",Min 1.2~4.8ms From"1"to"0",Min 1.2~4.8ms Front connector     20pin Input type NPN 2-wire BERO connector Yes Permissible quiescent current 1.5mA Galvanic isolation Betewwn the channel and backplane bus Yes Betewwn the channels,in groups of Yes The status indicates Green LED in each channel Dimension(WxHxD) 40×125×120mm

No hay especificaciones técnicas disponibles.
