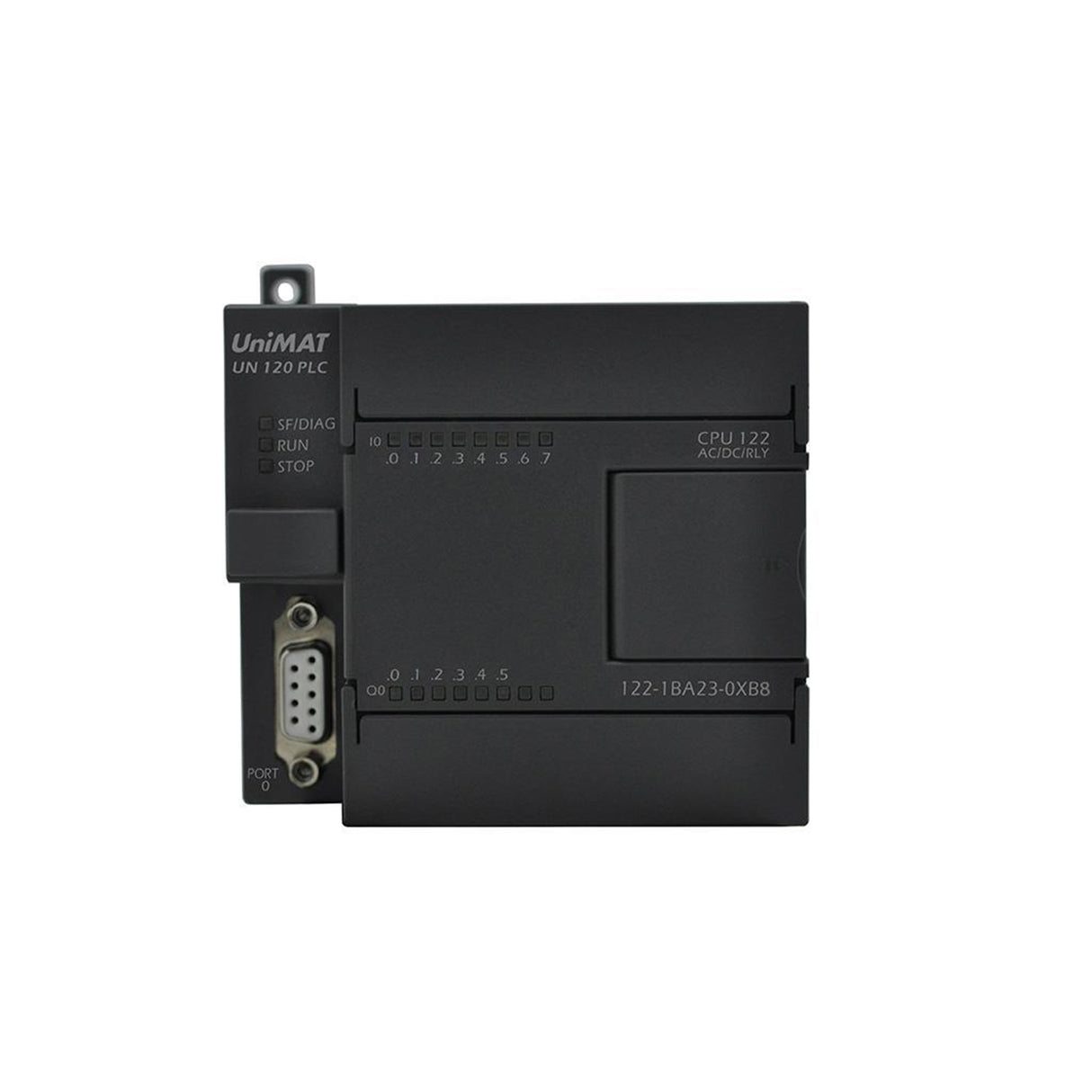

Small point CPU122-1Q DC/DC/DC
SKU:
2c98bb1cefb0
En Stock
CPU122 series PLC inherits the economical features of UN120 series. It can meet the industrial or civil applications (such as buildings and fire protection) within 14 points, and is an ideal choice for the upgrading and transformation of traditional time relay control systems.· The CPU122 body integrates 8-point digital input/6-point (transistor/relay) output.· The program space is 6K, and the data space is 2K. Support MicroWIN programming and debugging.1 standard PPI communication port, host free port and MODBUS-RTU communication protocolOrder number: UN 122-1AA23-0XB8
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
model CPU122 DC/DC/DC order number UN 122-1AA23-0XB8 Input voltage 20.4 to 28.8VDC Sensor output current none General Features Program/Data Memory 6K/2K Digital I/O Image Area 16 (8 inputs/6 outputs) Total number of timers (T) T 256 (4 1ms, 16 10ms, 236 100ms), time interrupt 2 resolution 1ms Counter (C) / Memory Memory Bits (M) 256/256 Communication Interface 1 RS-485 interface (standard PPI communication port, supports free port and modbus communication) PPI communication baud rate 9.6, 19.2kbps Maximum allowable expansion I/O modules not support Digital Input Characteristics The number of digital input points integrated in the machine 8 inputs support PNP/NPN Rated voltage 24VDC, 4mA isolation yes opto-isolated Digital output characteristics Local integrated digital output points 6 outputs output type Solid State - MOSFET Rated voltage 24VDC Rated current per point (max) 0.5 Environmental parameters Working temperature 0℃～＋60℃ Ambient relative humidity 5~90% Protection class IP20 Dimensions (W*H*D) 90*80*62mm
