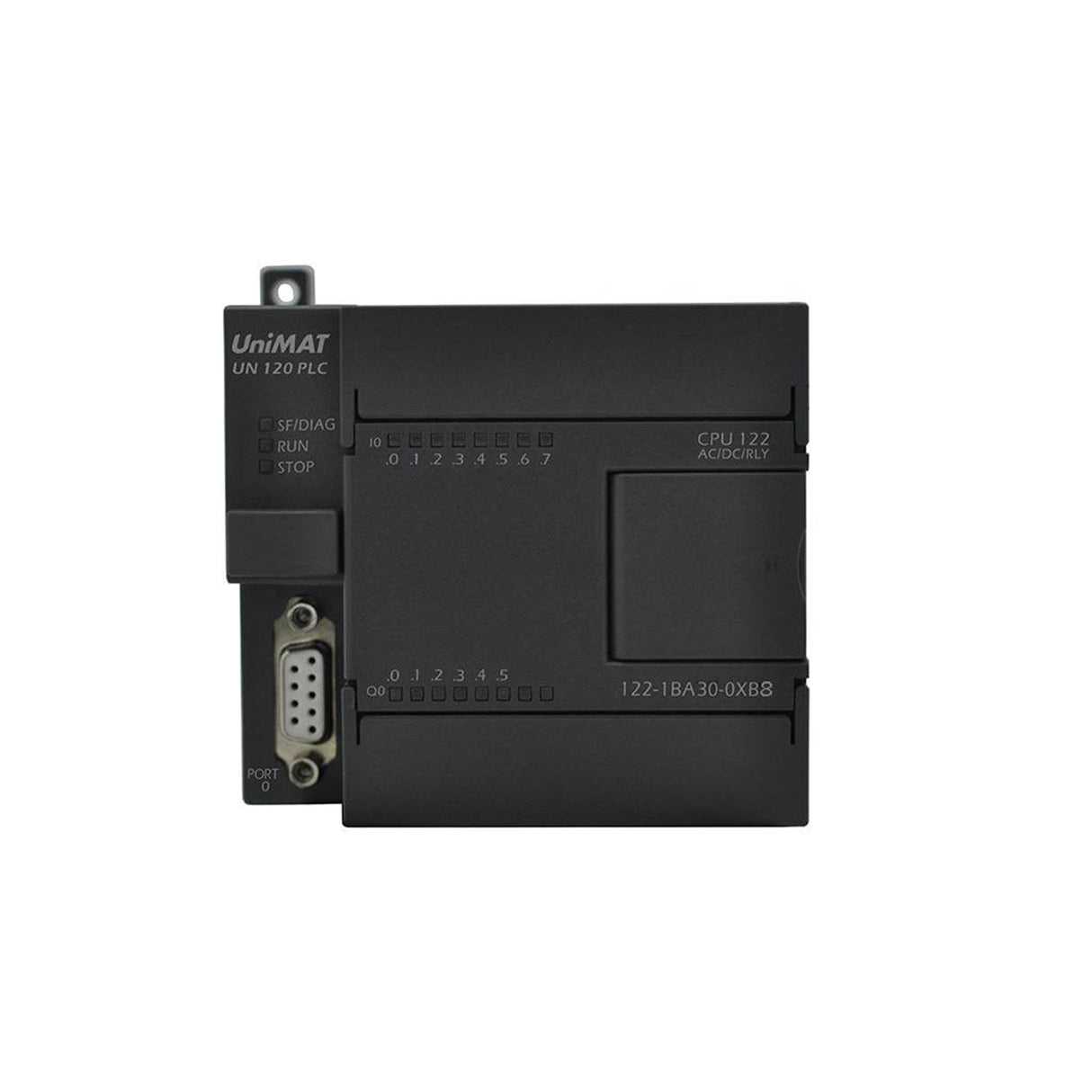

Small point CPU122-1R AC/DC/RLY (8DI/8DO)

model CPU122 AC/DC/RLY order number UN 122-1BA30-0XB8 Input voltage 110 ~ 240VAC Sensor output current 100mA General Features Program/Data Memory 6K/2K Digital I/O Image Area 16 (8 inputs/6 outputs) Total number of timers (T) T 256 (4 1ms, 16 10ms, 236 100ms), time interrupt 2 resolution 1ms Counter (C) / Memory Memory Bits (M) 256/256 Communication Interface 1 RS-485 interface (standard PPI communication port, supports free port and modbus communication) PPI communication baud rate 9.6, 19.2kbps Maximum allowable expansion I/O modules not support Digital Input Characteristics The number of digital input points integrated in the machine 8 inputs support PNP/NPN Rated voltage 24VDC, 4mA isolation yes opto-isolated Digital output characteristics Local integrated digital output points 8 output type relay Rated voltage 24VDC or 250VAC Rated current per point (max) 2A Environmental parameters Working temperature 0℃～＋60℃ Ambient relative humidity 5~90% Protection class IP20 Dimensions (W*H*D) 90*80*62mm
