Name: UH 507E HMI
Brand: UniMAT
SKU: c359052c383e
Availability: InStock

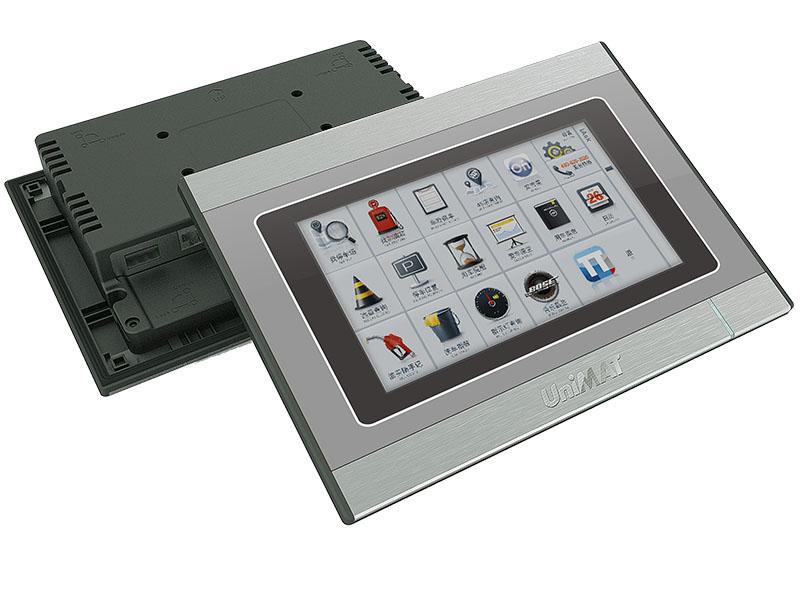

UH 507E HMI

24 bits real-color，Cortex A8 processor,
UH507 is a 7″TFT LCD resistance touch screen HMI, resolution 800×480,
Can expanding multi interface
Ethernet interface, support MODBUS-TCP protocol.

Type	LCD
Resolution（W×H dots）	800×480
Touch panel	4-wires analog resistance
Memory / Processor	Flash memory	256MB
	DRAM	128MB
	Processor	600MHz 32bit
Communication Interface	USB Host	USB 2.0 Type A
	USB Slave	USB 2.0 Type B
	Ethernet port	10/100Mbps
	DB9	RS485，non-isolation，3-B，8-A，5-GND
Switch	Operation mode optional( operation mode, test mode, calibration mode, parameter setting mode)
Power supply	Input voltage	DC24V，Mini.20.4V，Max.28.8V
Power supply	Current comsuption	300mA
Installation	Dimension W×H×D	230×166×39
Installation	Hole size mm	192×138
