type |
LCD screen |
|
Resolution |
1024 × 600 |
|
display color |
65535 colors |
|
Backlight type |
LED |
|
Display brightness |
350cd/㎡ |
|
LCD life |
30000 hours |
|
Touch Type |
4 -wire resistive |
|
processor |
A8，600MHz |
|
storage |
256MB FLASH+128MB DDR3 |
|
USB Host |
USB2.0 x 1 , Type A(USB1), support U disk to update firmware, configure and store data |
|
USB Slave |
USB2.0 x 1 , Type B (USB2), support program upload and download |
|
serial interface |
COM1：RS485 COM2：RS232 |
|
DB9 |
male head |
|
Ethernet |
10M/100M adaptive |

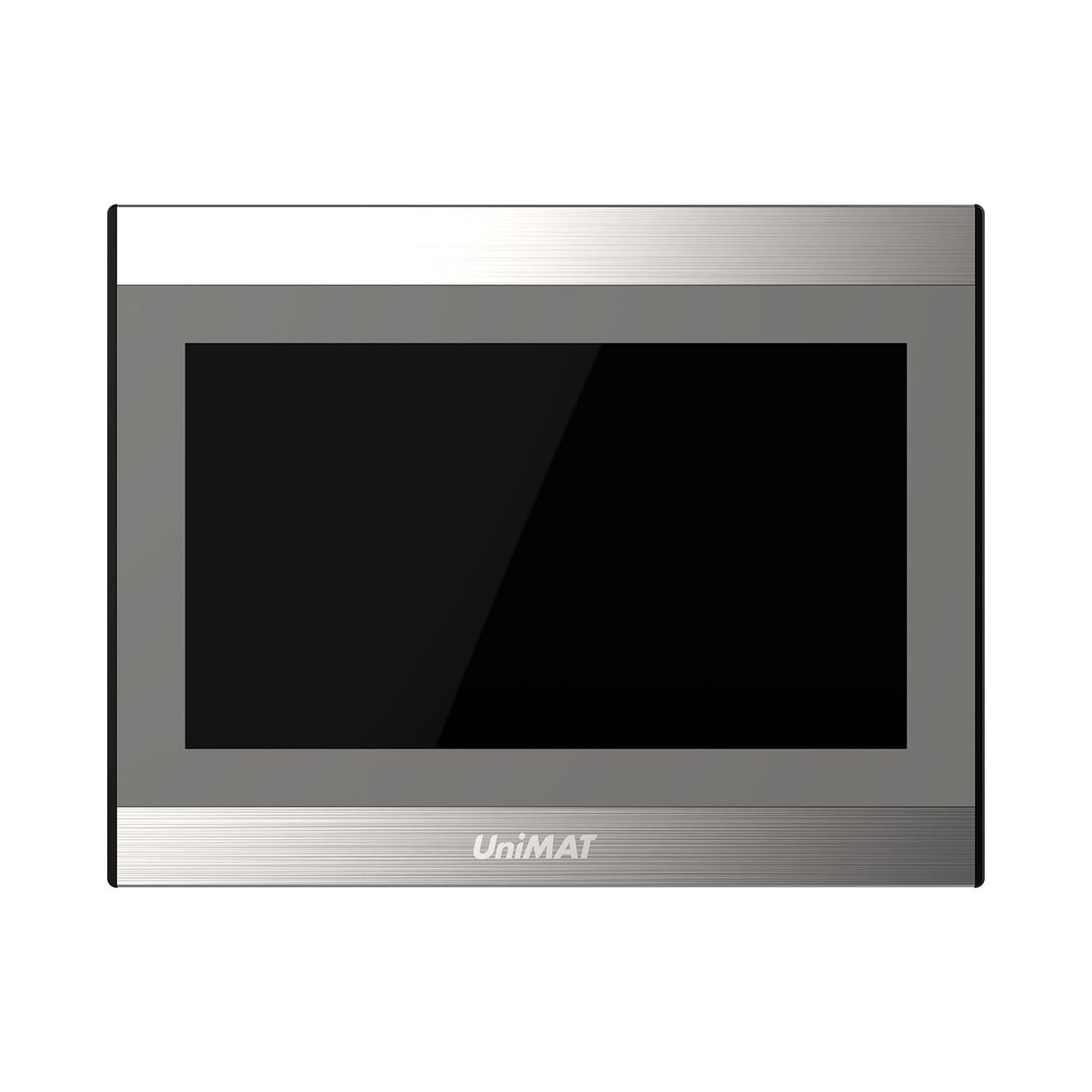

UH 510AE
Order number: UH 510-4EU01-0AA8;
24-bit true color, clear picture, using Cortex A8 processor;
UH507 is a 10″ TFT LCD resistive touch human-machine interface with a resolution of 1024×600;
A variety of interfaces can be extended for information interaction between the system and users;
Ethernet interface, support MODBUS-TCP protocol
UH 510AE DIMENSION
