| technical parameters | |
|---|---|
| model | UH 407S |
| order number | UH 407-4AU01-0AA0 |
| Performance Specifications | |
| LCD screen | 7’TFT |
| display color | 65535 colors |
| Resolution | 800 × 480 |
| Backlight type | led |
| Display brightness | 300cd/㎡ |
| LCD life | 30000 hours |
| Touch Type | 4-wire resistive |
| processor | 1GHz quad-core frequency |
| storage | 256MB FLASH+128MB DDR3 |
| USB Host | USB2.0 x 1, Type A(USB1), support U disk to update firmware, configure and store data |
| USB Slave | USB2.0 x 1, Type B (USB2), support program upload and download |
| serial interface | COM1:RS485/RS422 COM2:RS232 COM3:RS485 |
| Ethernet | not support |
| DB9 | male head |
| Electrical Specifications | |
| rated power | 7.2W |
| Power supply | 24V DC |
| input range | 20.4~28.8V DC |
| Loss of power allowed | 10ms |
| Pressure resistance | 500V AC for 1 minute |
| Structural properties | |
| shell color | creamy-white |
| Shell material | ABS+PC plastic |
| Dimensions | 203 × 149 × 32 (mm) |
| Hole Size | 192 x 138(mm) |
| weight | 0.75kg |
| Environmental Specifications | |
| Operating temperature | 0～50℃ |
| Working humidity | 10~90%RH (non-condensing) |
| storage temperature | -20～60℃ |
| Storage humidity | 10~90%RH (non-condensing) |
| Seismic performance | 10~25Hz (X, Y, Z direction 2G/30 minutes) |
| cooling method | natural air cooling |
| certified product | |
| Front panel protection level | Compliant with IP65 certification (4208-93) |
| CE certification | Compliant with CE certification (EN61000-6-2:2005/EN61000-6-4:2007) |

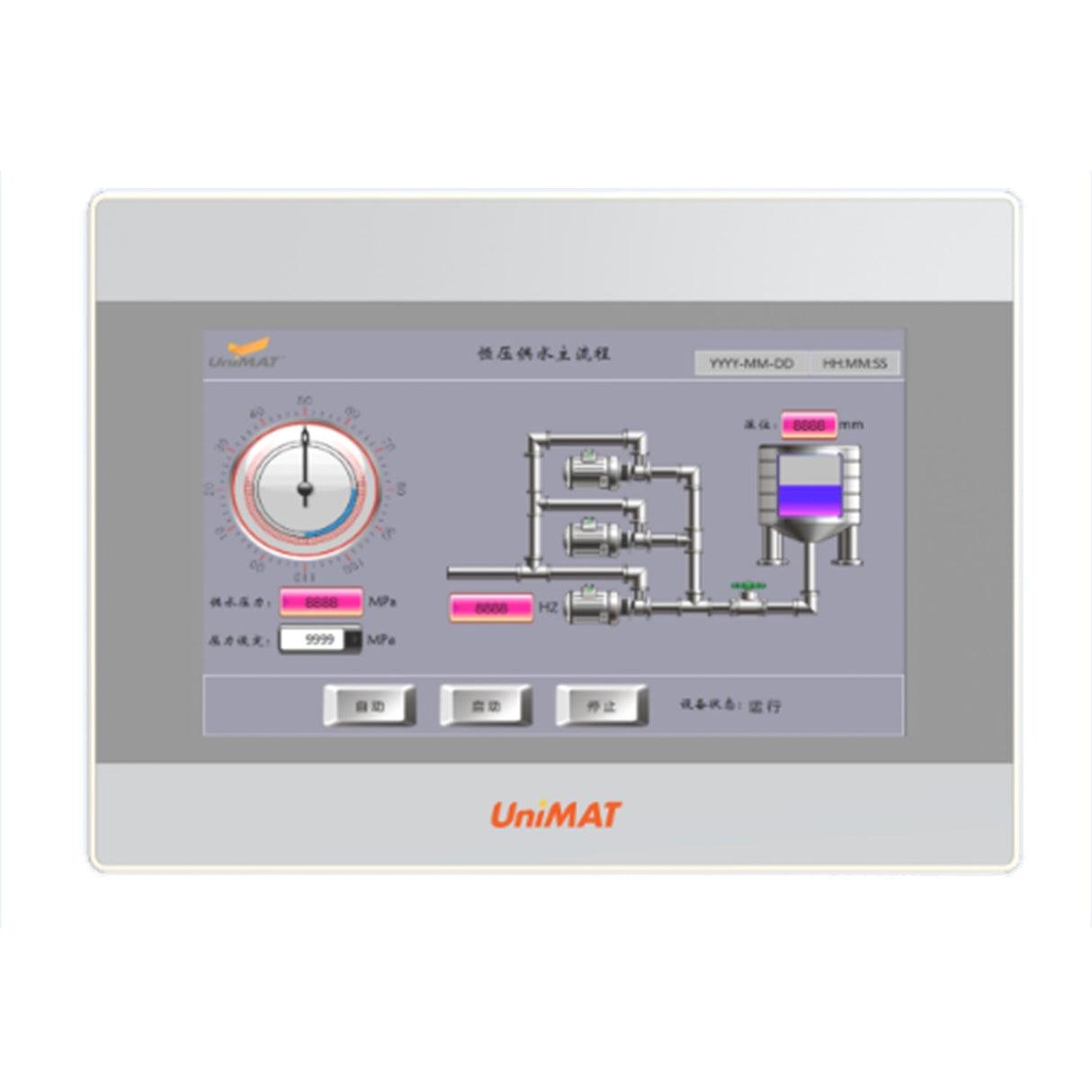

UH407
Product Description
High standards and high requirements. Industrial-grade design standards, able to operate stably and reliably for a long time in harsh environments.
High configuration, large storage. Adopt quad-core 1GHz CPU frequency, 256FLASH+128MB DDR3 more space.
The serial interface is more abundant. Support RS485/RS232/RS422 and RS485 to connect more devices at the same time.
The secondary development is convenient. Support ladder diagram and script programming operations.
The networking function is powerful. The network port/serial port supports one screen with multiple machines and one machine with multiple screens.
Meticulous structural design. The dust-proof groove on the back is designed to effectively prevent dust.
Product advantages:
①High standards and high requirements. Industrial-grade design standards, able to operate stably and reliably for a long time in harsh environments.
②High configuration, large storage. Adopt quad-core 1GHz CPU frequency, 256FLASH+128MB DDR3 more space.
③The serial interface is more abundant. Support RS485/RS232/RS422 and RS485 to connect more devices at the same time.
④The secondary development is convenient. Support ladder diagram and script programming operations.
⑤The networking function is powerful. The network port/serial port supports one screen with multiple machines and one machine with multiple screens.
⑥Meticulous structural design. The dust-proof groove on the back is designed to effectively prevent dust.
