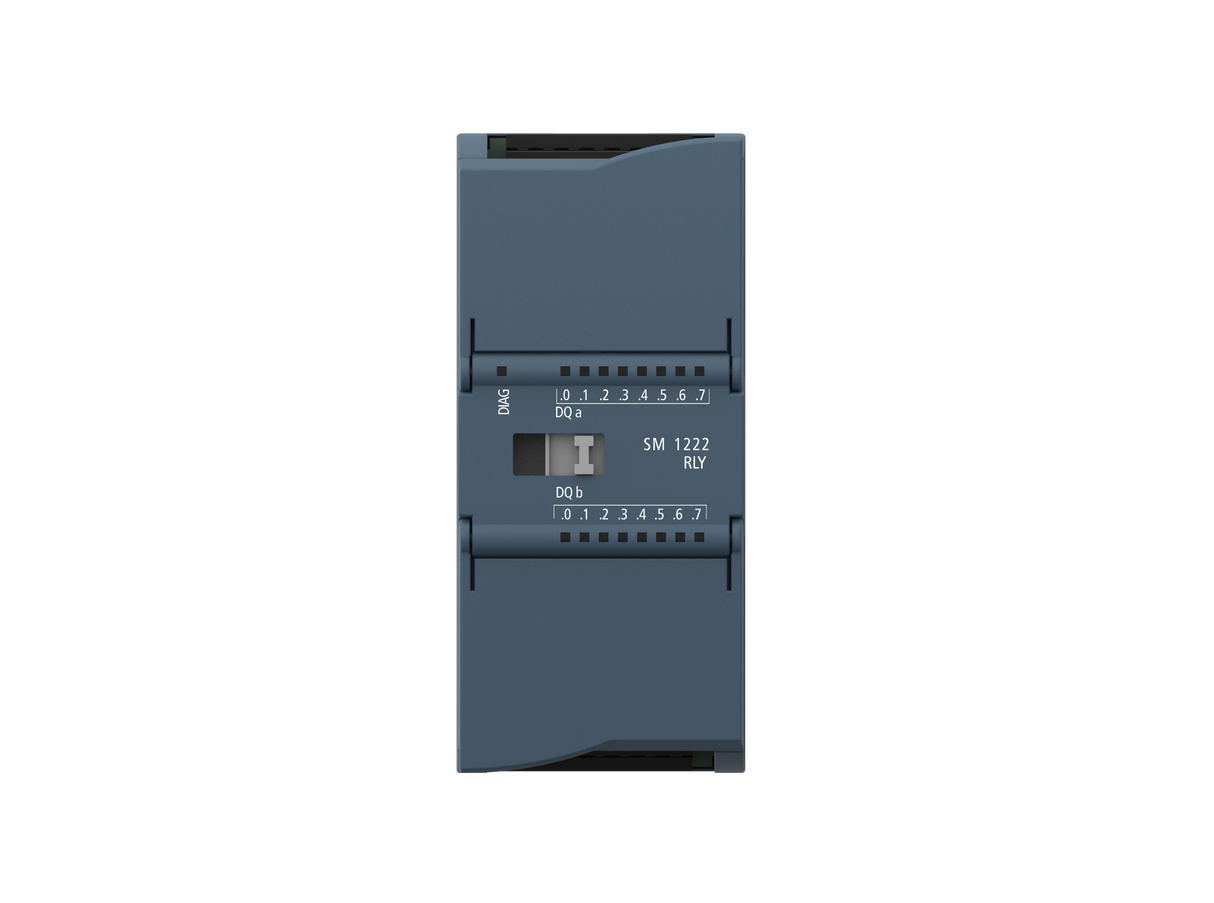

UN 222-1BF32-0XB0

Model SM 1222 DQ 8×RLY Order number UN 222-1HF32-0XB0  General Dimension W x H x D ( m m ) 45x100×75   Weight 190g Power consumption 4.5 W Current consumption (24VDC) 7 mA per relay coil used Current consumption (SM bus) 120 mA Digital output Output points 8  Voltage range 5 - 3 0 V D C or 5 - 2 5 0 V A C     Type Relay, dry contact Logic 1 signal at maximum current ----   Logic 0 signal with 10 KQ load ----  Current (maximum) 2.0A  Lamp load 30 W DC/200 WAC On-state contact resistance 0.2 Ω maximum for new equipment                                                         Leakage current per point --- Inrush current 7A with contacts closed Overload protection None Isolation (field side and logic side) 1500VAC (coil and contacts)None (coil and logic side) Isolation group 2   Current per common terminal (maximum) 10 A Inductor clamping voltage - Switching delay Maximum 10 ms Mechanical life (no load) 10,000,000 open/close cycles Contact life under rated load 100,000 open/close cycles Behavior during RUN -STOP Previous value or replacement value (default value is 0) Number of outputs switched on simultaneously 8 Cable length (meter) 500(shielded);150(unshielded)
