Unimat
UniMAT
UN 223-1BF22-0XA0
SKU:
7cebe77ebdc8
En Stock

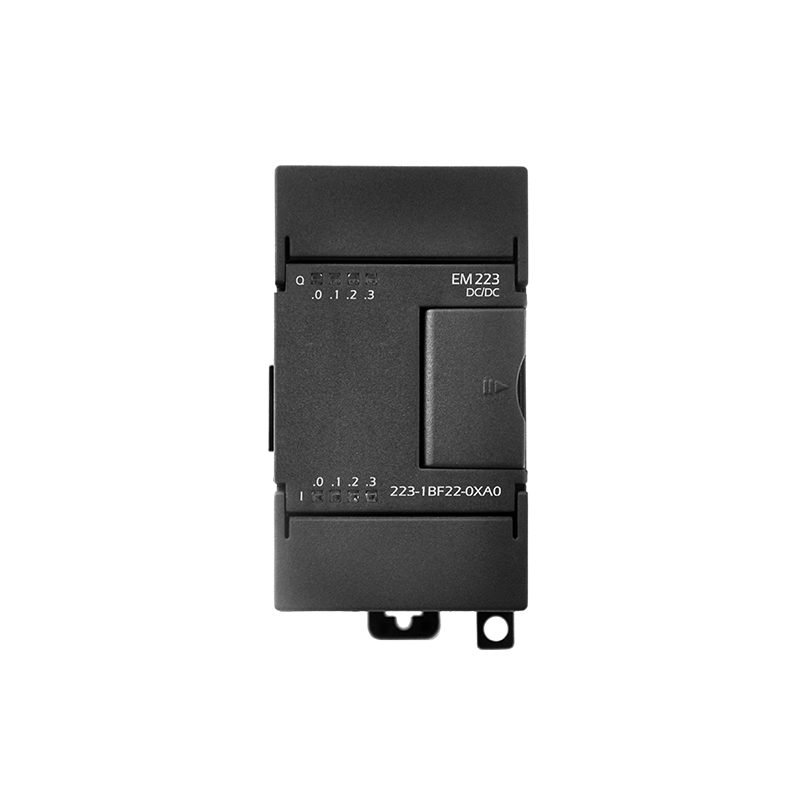

EM 223 4DI / 4DO digital Micro PLC Controller which is compatible with Siemens PLC1). EM223 4DI / 4 DO , 24V DC with transistor ;2). Compatible with Siemens 6ES7223-1BF22-0XA0 ;3). Digital Input and Output module ;4). Could connect with Siemens 200 CPU ;5). 3 year warranty ;
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Product Description 4DI,24VDC/4DO,24VDC Transistor; Optical isolation with high immunity From bus current consumption 40mA Power loss 2W Input Features Number of digital inputs 4 Input voltage 24V DC,4mA Logic 0 signal 0~5V DC Logic 1 signal 15~30V DC Maximum Input Delay Time 4.5ms Signal input type· PNP/NPN Optical isolation(Galvanic) (field to logic) 500 VAC for 1 minute Cable Length (Shielded) 500m Cable Length (unshielded) 300m output Features Number of digital outputs 4 Output type Transistor Isolation Optical coupler Output voltage 24V DC Output voltage range 20.4~28.8V DC Output Current 0.75A Lamp load 5W Lifetime mechanical / Lifetime contacts(Rated load voltage / Cable Length (Shielded) 500m Cable Length (unshielded) 150m Dimensions(W x H x D)(mm) 46×80×62
No hay especificaciones técnicas disponibles.
