Unimat
UniMAT
UN 223-1BH22-0XA0
SKU:
16f8e25072c0
En Stock

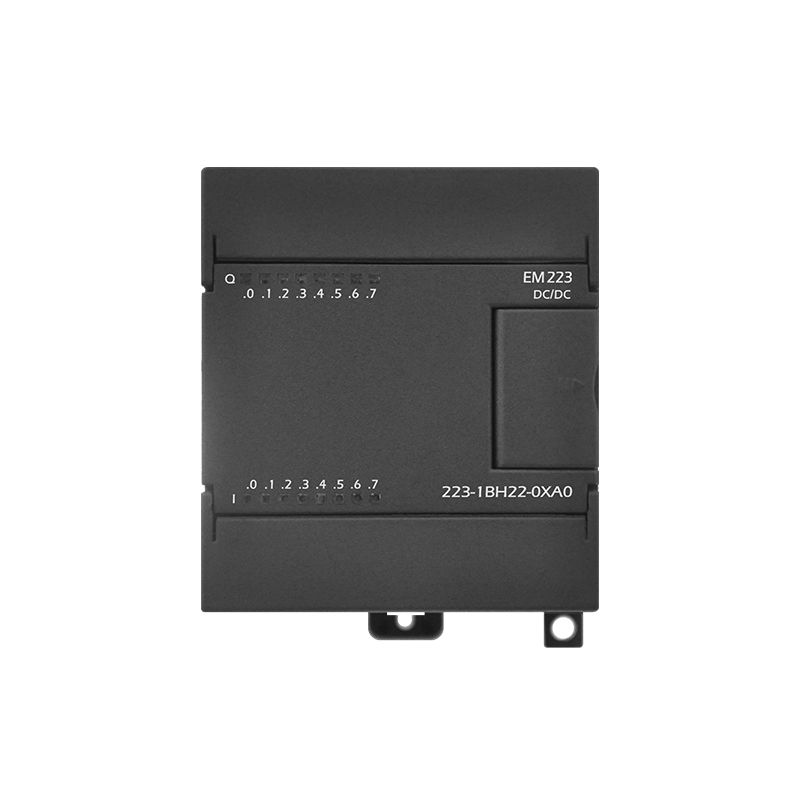

EM 223 8DI / 8DO Chinese Micro PLC Controller which is similar as Siemens PLC1). EM223 8DI / 8 DO , 24V DC with transistor ;2). Compatible with Siemens 6ES7 223-1BH22-0XA0 ;3). Digital Input and Output module ;4). Could connect with Siemens 200 CPU ;5). 3 year warranty ;
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Power consumption ·From +5V DC backplane bus 80mA ·Power loss 3W Number of digital contact 8 Rated voltage 24V 4mA ·for “0”signal 0~5V DC ·for “1”signal 15~30V DC Input delay(Max) 4.5ms Signal input type PNP/NPN Isolation tested for contact 500VAC,1Min Cable length(shielded) 500m Cable length(unshielded) 300m Number of digital contact 8 Output type Transistor Isolation tested for contact Optocoupler Rated voltage 24 VDC Voltage range 20.4~28.8VDC Rated voltage 0.75A Lamp load 5W Cable length(shielded) 500m Cable length(unshielded) 150m Dimensions(W x H x D)(mm) 71.2×80×62 weight 145g
No hay especificaciones técnicas disponibles.
