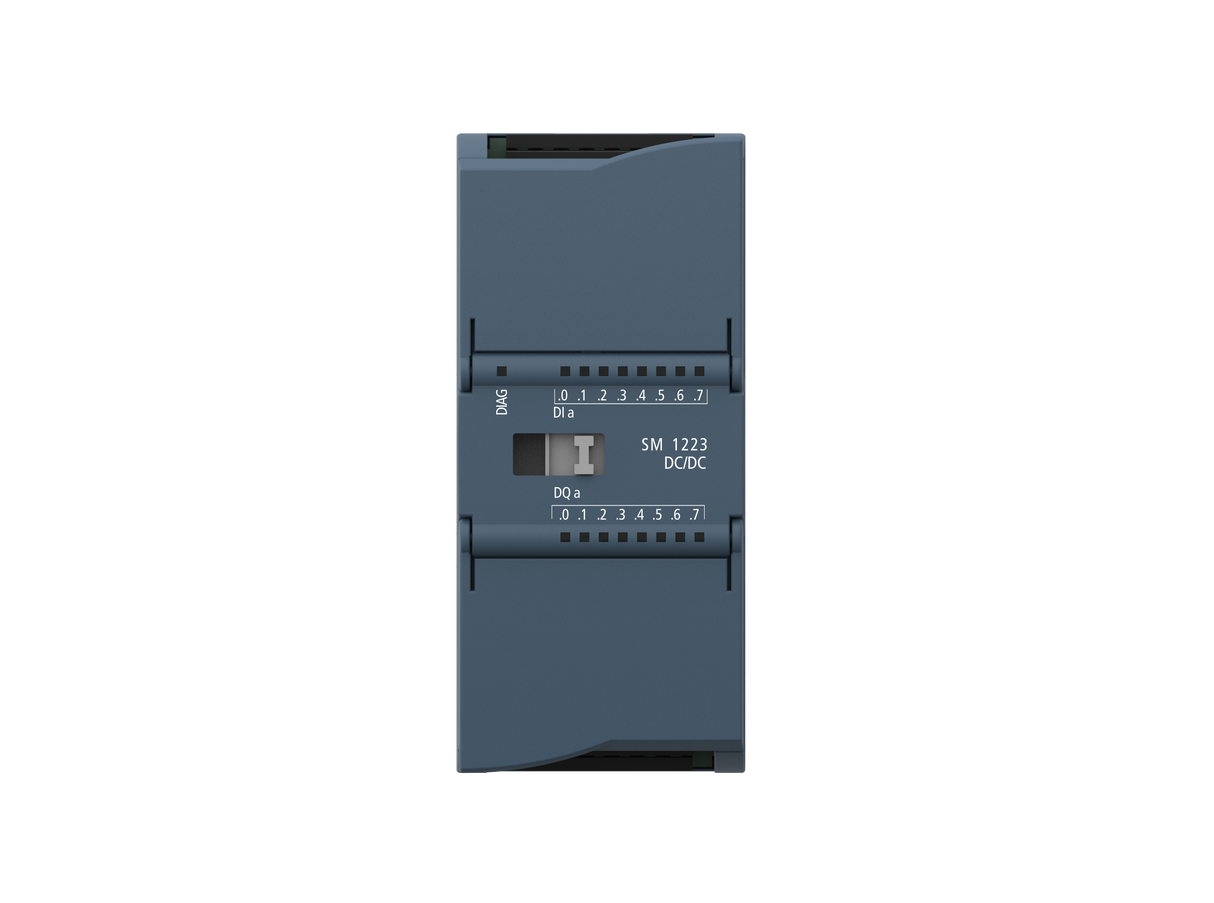

UN 223-1BH32-0XB0

Model SM 1223DI 8x24 V DC DQ 8×RLY SM 1223DI 16×24 V DCDQ 16×RLY SM 1223DI 8×24 V DCDQ 8×24V DC SM 1223DL16x24 V DCDQ 16×24V DC Order number UN 223-1PH32-0XB0 UN 223-1PL32-0XB0 UN 223-1BH32-0XB0 UN 223-1BL32-0XB0 dimensionWxHxD(mm) 45x100x75 70x100x75 45x100×75 70x100x75 weight 230 g  350g   210g   310 g Power consumption 5.5 W 10 W 2.5 W 4.5 W Current consumption (SM bus) 145 mA 180 mA    145 mA   185 mA Current consumption (24VDC) Each point input used is 4mA7mA per relay coil used Each point input used is 4mA7mA per relay coil used 150 mA 200 mA Digital input Enter points 8 16 8 16 Type Sink/Source type (IEC Class 1 sink type) Rated voltage 24V DC at 4 mA, nominal Allowed continuous voltage Max 30V DC Surge voltage 35VDC, lasting 0.5s Logic 1 signal (minimum) 2. 15V DC at 5mA Logic 0 signal (maximum) 5 V DC at 1 mA Isolation (field side and logic side) 707VDC (type test) Isolation group 2 2 2 2 Filter time 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8ms (selectable, 4 in a group) Number of inputs connected simultaneously 8 ·8 (no adjacent points), at 60ºC (horizontal) or 50ºC (vertical) ·16, at 55ºC (horizontal) or 45ºC (vertical) 8                                                                  16 Cable length (meter) 500 (shielded); 300 (unshielded) Digital output Output points 8 16 8 16 Type Relay, dry contact Solid state -MOSFET (source type) Voltage range 5-30VDC or 5-250VAC                                                                                20.4 -28.8V DC Logic 1 signal at maximum current - Min20 V DC Logic 0 signal with 10 KQ load - Max0.1V DC Current (maximum) 2.0A 0.5 A Lamp load 30 W DC/200 WAC                                                                            5 W On-state contact resistance 0.2 Ω maximum for new equipment Max0.6 Q Leakage current per point - Max 10μA Inrush current 7A with contacts closed 8A maximum duration 100 ms Overload protection None Isolation (field side and logic side) 1500VAC (coil and contacts)None (coil and logic side) 707V DC (type test) Isolation group 2                                                                   4                                                   1 1                                                              Current at each common terminal 10 A 8A 4 A 8 A Inductor clamping voltage --                                                                                                          L+-48 V,1W loss Switching delay Maximum 10 ms The longest time from disconnection to connection is 50μsThe longest time from connecting to disconnecting is 200μs Mechanical life (no load) 10,000,000 open/close cycles                                                             Contact life under rated load 100,000 open/close cycles Behavior during RUN-STOP Previous value or replacement value (default value is 0) Number of outputs switched on simultaneously 8 ·8 (no adjacent points), 60°C (horizontal) or 50°C (vertical)·At 16,55ºC(horizontal) or 45ºC(vertical) 8 16
