Unimat
UniMAT
UN 223-1HF22-0XA0
SKU:
09ee98ac4fef
En Stock

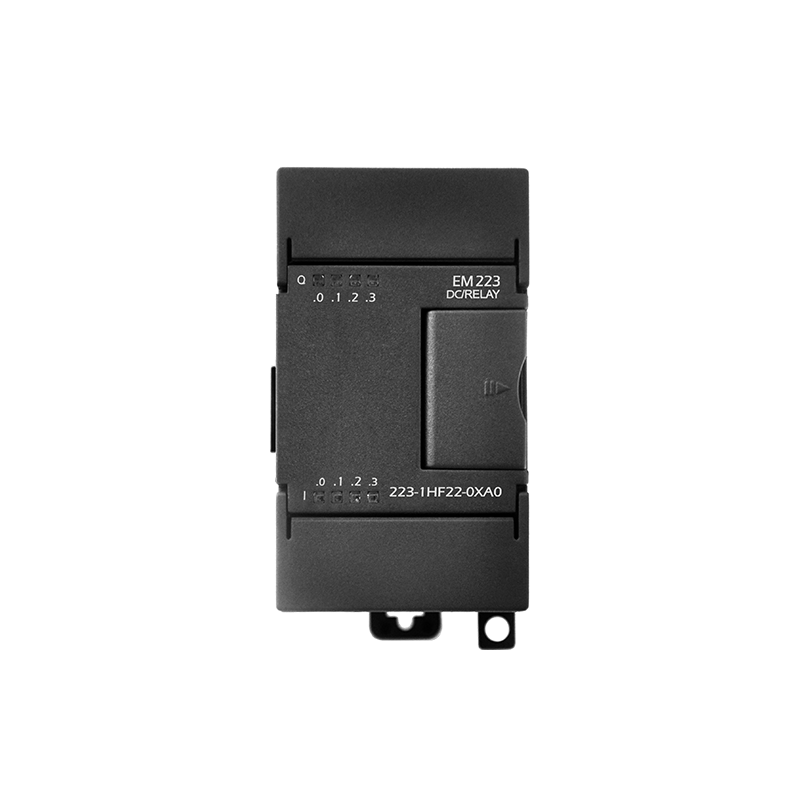

EM 223 4DI / 4DO Digital Micro PLC Controller with relay1). EM223 4DI / 4 DO , 24V DC with relay ;2). Compatible with Siemens 6ES7223-1HF22-0XA0 ;3). Digital Input and Output module ;4). Could connect with Siemens 200 CPU ;5). 3-year warranty ;
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Product Description 4DI,24VDC,/4DO, 24 VDC/250VAC, Relay isolation with high immunity. From bus current consumption 40mA Power loss 2W Input Features Number of digital inputs 4 Input voltage 24V DC,4mA Logic 0 signal 0~5V DC Logic 1 signal 15~30V DC Maximum Input Delay Time 4.5ms Signal input type· PNP/NPN Optical isolation(Galvanic) (field to logic) 500 VAC for 1 minute Cable Length (Shielded) 500m Cable Length (unshielded) 300m output Features Number of digital outputs 4 Output type Relay Isolation Relay Output voltage 24V DC or 250V AC Output voltage range 5~30V DC/20~250V AC Output Current 2.0A Lamp load 30W DC/200W AC Lifetime mechanical 10,000,000 Lifetime contacts(Rated load voltage 100,000 Cable Length (Shielded) 500m Cable Length (unshielded) 150m Dimensions(W x H x D)(mm) 46×80×62
No hay especificaciones técnicas disponibles.
