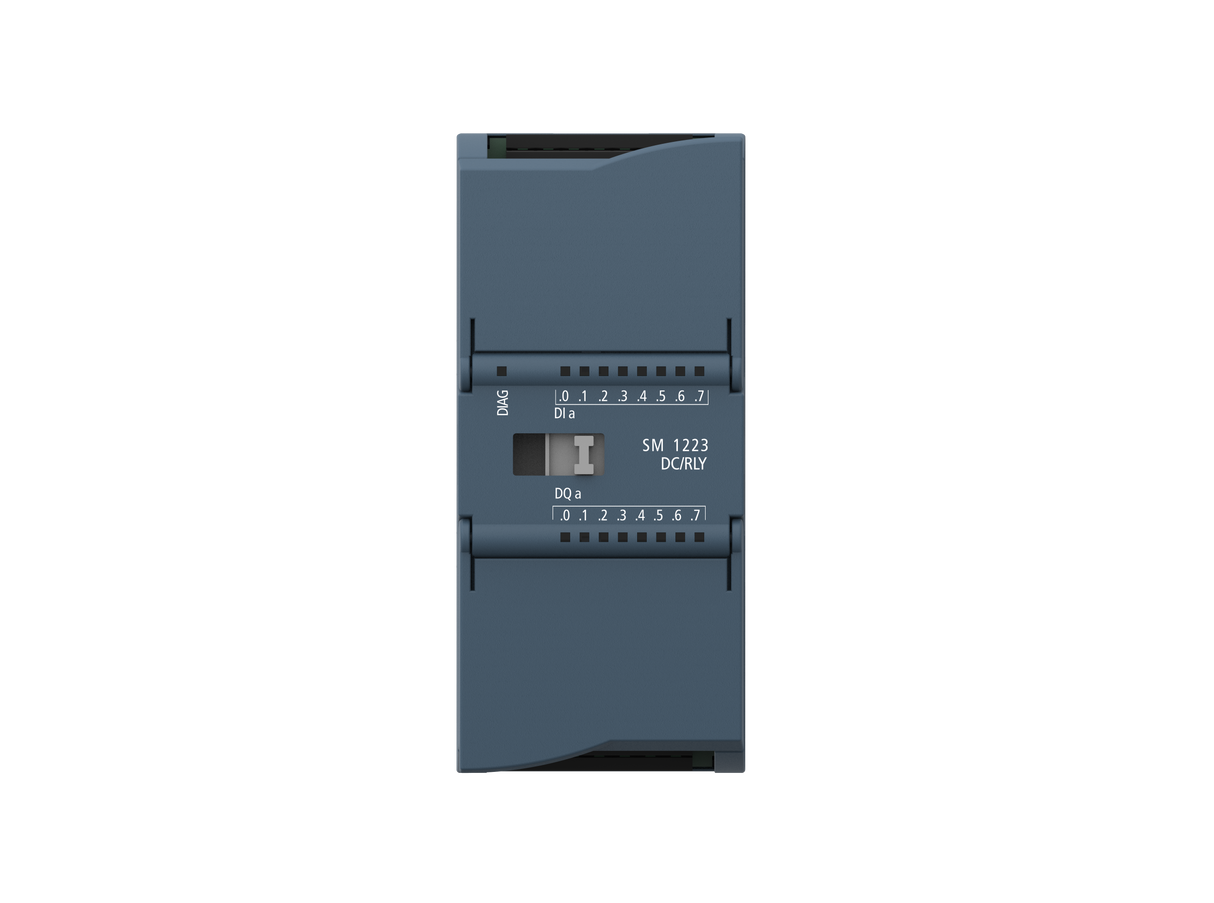

UN 223-1PH32-0XB0

Model SM 1223DI 8x24 V DC DQ 8×RLY Order number UN 223-1PH32-0XB0 dimensionWxHxD(mm) 45x100x75 weight 230 g  Power consumption 5.5 W Current consumption (SM bus) 145 mA Current consumption (24VDC) Each point input used is 4mA7mA per relay coil used Digital input Enter points 8 Type Sink/Source type (IEC Class 1 sink type) Rated voltage 24V DC at 4 mA, nominal Allowed continuous voltage Max 30V DC Surge voltage 35VDC, lasting 0.5s Logic 1 signal (minimum) 2. 15V DC at 5mA Logic 0 signal (maximum) 5 V DC at 1 mA Isolation (field side and logic side) 707VDC (type test) Isolation group 2 Filter time 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8ms (selectable, 4 in a group) Number of inputs connected simultaneously 8 Cable length (meter) 500 (shielded); 300 (unshielded) Digital output Output points 8 Type Relay, dry contact Voltage range 5-30VDC or 5-250VAC                                                                                Logic 1 signal at maximum current - Logic 0 signal with 10 KQ load - Current (maximum) 2.0A Lamp load 30 W DC/200 WAC                                                                            On-state contact resistance 0.2 Ω maximum for new equipment Leakage current per point - Inrush current 7A with contacts closed Overload protection None Isolation (field side and logic side) 1500VAC (coil and contacts)None (coil and logic side) Isolation group 2                                                                   Current at each common terminal 10 A Inductor clamping voltage --                                                                                                          Switching delay Maximum 10 ms Mechanical life (no load) 10,000,000 open/close cycles                                                             Contact life under rated load 100,000 open/close cycles Behavior during RUN-STOP Previous value or replacement value (default value is 0) Number of outputs switched on simultaneously 8 Cable length (meter) 500(shielded);150(unshielded)
