Unimat
UniMAT
UN 223-1PL22-0XA0
SKU:
e79b213aa736
En Stock

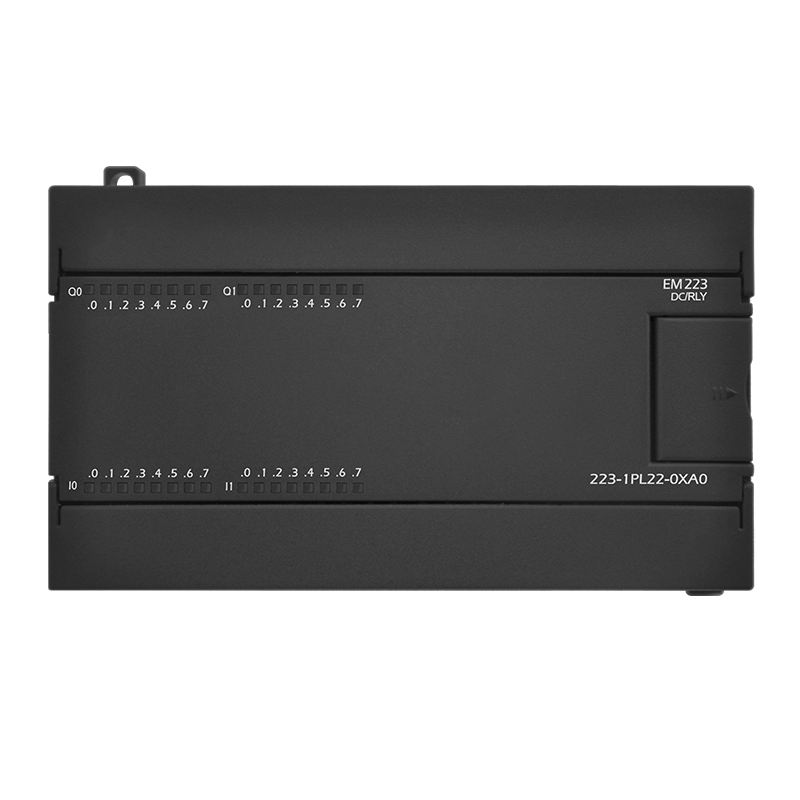

EM 223 16DI / 16DO 200 PLC Programming Logic Controller Module with relay1). EM223 16DI / 16 DO , 24V DC with relay ;2). Compatible with Siemens 6ES7223-1PL22-0XA0 ;3). Digital Input and Output module ;4). Could connect with Siemens 200 CPU ;5). 3-year warranty ;
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Product Description 16DI,24VDC/16DO, 24 VDC/250VAC, Relay isolation with high immunity. From bus current consumption 140mA Power loss 5.2W Digital Input Specification Number of digital inputs 16 Input voltage 24 VDC,4mA Logic 0 signal 0~5 VDC Logic 1 signal 15~30 VDC Maximum Input Delay Time 4.5ms Signal input type· PNP/NPN Optical isolation(Galvanic) 500 V AC for 1 minute Cable Length (Shielded) 500m Cable Length (unshielded) 300m Digital Output Specification Number of digital outputs 16 Output type Relay Isolation Relay Output voltage 24 VDC Output voltage range 5~30 VDC/20~250V AC Output Current 2.0A Lamp load 30W DC/200W AC Lifetime contact mechanical 10,000,000 Lifetime contact mechanical (rated load voltage) 100,000 Cable Length (Shielded) 500m Cable Length (unshielded) 150m Dimensions(W x H x D)(mm) 137.5×80×62
No hay especificaciones técnicas disponibles.
