UN 223-1PL32-0XB0

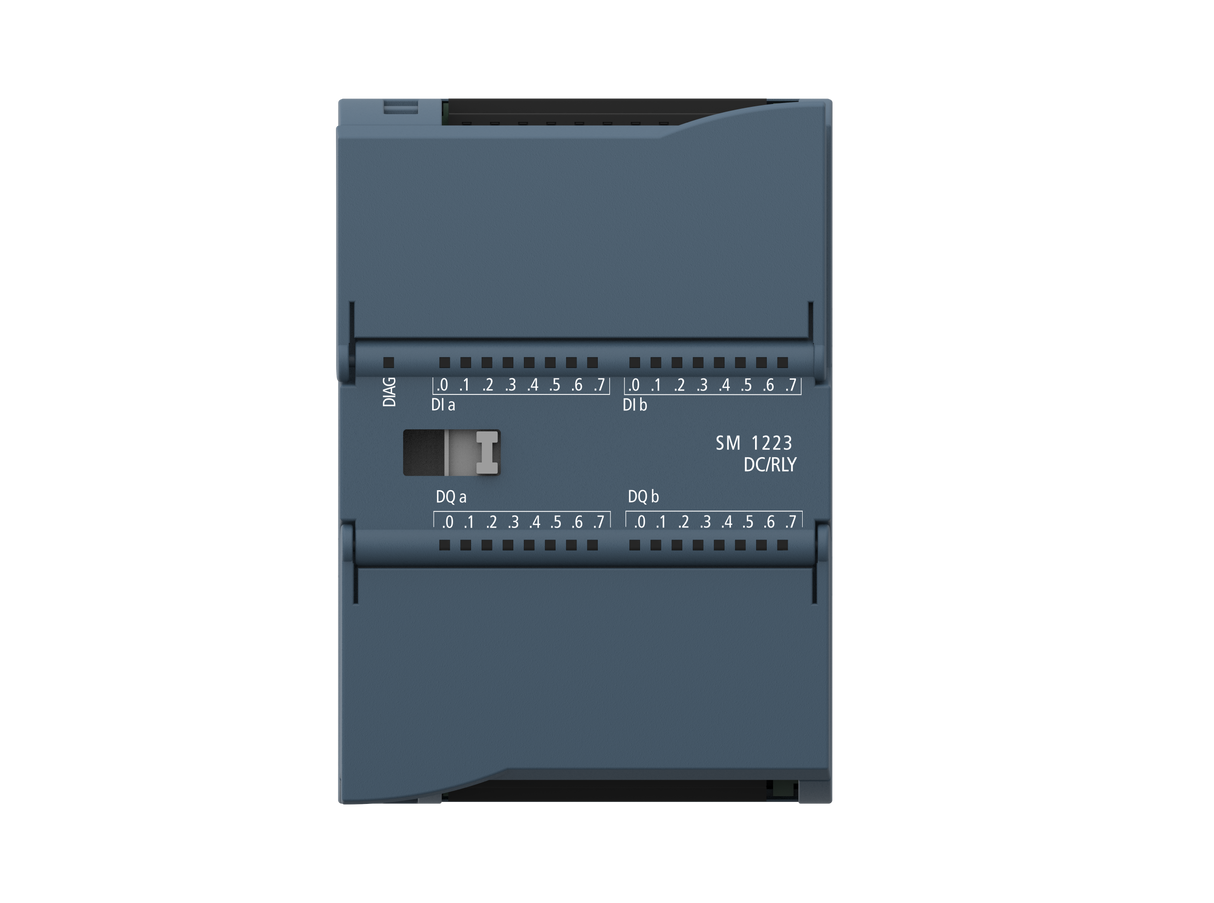

SM 1223 Digital input/output Module which is similar as Siemens S7-1200 PLC1) SM 1223 Digital input/output 16DI 24V DC/ 16 Relay2) Compatible with Siemens 6es7 223-1PL32-0XB03) Digital module;4) Could connect with Siemens 1200 CPU and Modules;5) 3-year warranty;6) 2-3 working days after payment can ship;7) Material: ABS, ICDigital inputEnter points8168TypeSink/Source type (IEC Class 1 sink type)Rated voltage24V DC at 4 mA, nominalAllowed continuous voltageMax 30V DCSurge voltage35VDC, lasting 0.5sLogic 1 signal (minimum)2. 15V DC at 5mALogic 0 signal (maximum)5 V DC at 1 mAIsolation (field side and logic side)707VDC (type test)Isolation group222Filter time0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8ms (selectable, 4 in a group)Number of inputs connected simultaneously8·8 (no adjacent points), at 60ºC (horizontal) or 50ºC (vertical)·16, at 55ºC (horizontal) or 45ºC (vertical)8Cable length (meter)500 (shielded); 300 (unshielded)Digital outputOutput points8168TypeRelay, dry contactSolid state -MOSFET (source type)Voltage range5-30VDC or 5-250VAC20.4 -28.8V DCLogic 1 signal at maximum current-Min20 V DCLogic 0 signal with 10 KQ load-Max0.1V DCCurrent (maximum)2.0A0.5 ALamp load30 W DC/200 WAC5 WOn-state contact resistance0.2 Ω maximum for new equipmentMax0.6 QLeakage current per point-Max 10μAInrush current7A with contacts closed8A maximum duration 100 msOverload protectionNoneIsolation (field side and logic side)1500VAC (coil and contacts)None (coil and logic side)707V DC (type test)Isolation group241Current at each common terminal10 A8A4 AInductor clamping voltage--L+-48 V,1W lossSwitching delayMaximum 10 msThe longest time from disconnection to connection is 50μsThe longest time from connecting to disconnecting is 200μsMechanical life (no load)10,000,000 open/close cyclesContact life under rated load100,000 open/close cyclesBehavior during RUN-STOPPrevious value or replacement value (default value is 0)Number of outputs switched on simultaneously8·8 (no adjacent points), 60°C (horizontal) or 50°C (vertical)·At 16,55ºC(horizontal) or 45ºC(vertical)8
