Unimat
UniMAT
UN 231-5ND32-0XB0
SKU:
3cd4571be0a7
En Stock

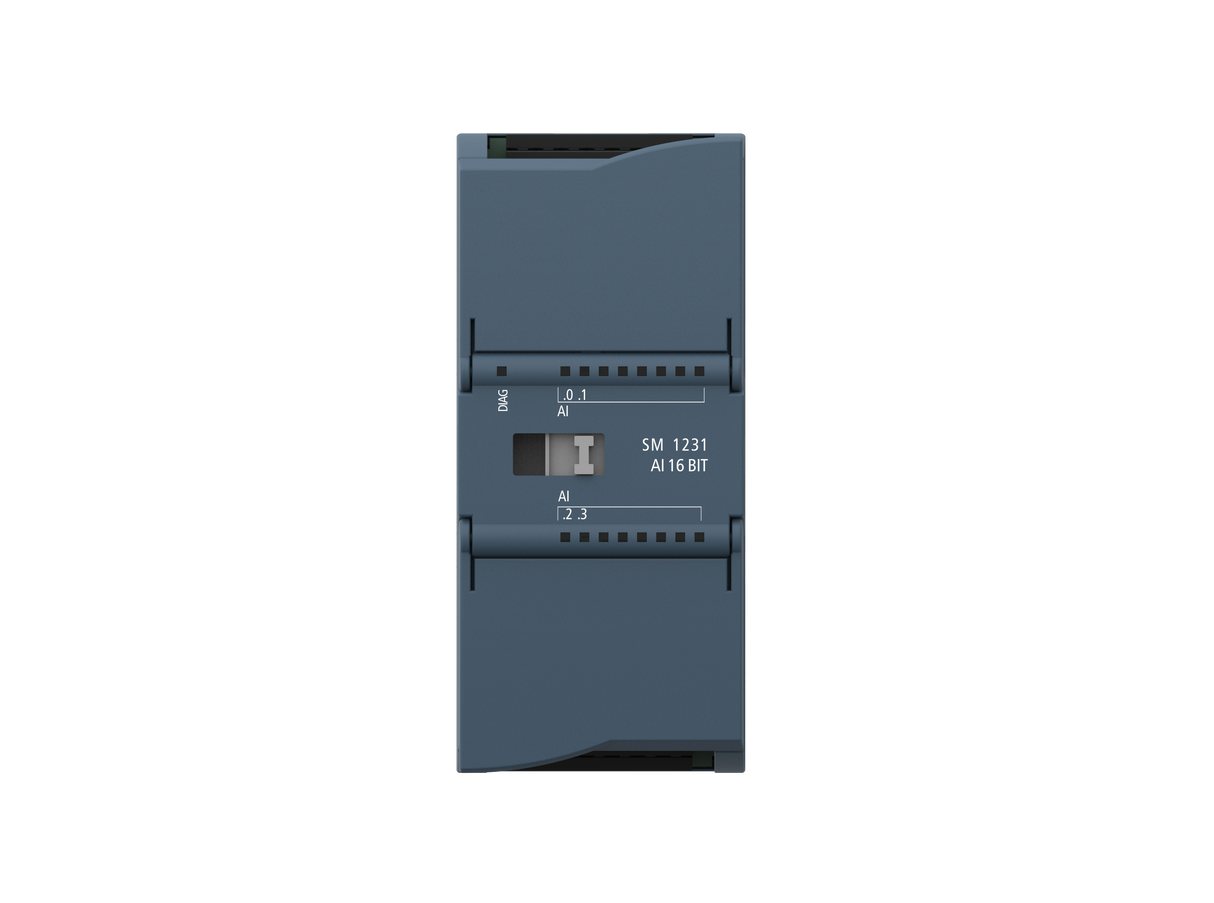

SM 1231 Analog input 1200PLC Module which is similar as Siemens S7 - 1200 PLC1) SM 1231 Analog input 4AI 16-bit resolution2) Compatible with Siemens 6ES7 231-5ND32-0XB0;3) Analog input module;4) Could connect with Siemens 1200 CPU and Modules;5) 3-year warranty;6) 2-3 working days after payment can ship;7) Material: ABS, IC
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Model SM 1231 Al 4x16bit Order number UN 231-5ND32-OXB0 General Dimension W x H x D ( mm) 45x100x75 Weight 180g Power consumption 2.0 W Current consumption (SM bus) 80 mA Current consumption (24V DC) 65 mA Analog input Number of input channels 4 Type Voltage or current (differential) Range ±10 V,±5 V,±2.5V,±1.25V 0 - 2 0 m A or 4 m A - 2 0 m A Full scale range (data word) -27648 -27648, voltage; 0-27648, current Overshoot/undershoot range (data word) Voltage:32,511-27,649/-27,649 --32,512Current:32,511-27,649/0--4,864 Overflow/underflow (data word) Voltage:32.767-32.512/-32.513 --32.768Current 0-20mA:32,767-32,512/-4,865--32,768 Current 4-20mA:32,767-32,512/When the value is less than -4,864, it means an open circuit Accuracy 12 bits+ sign bit 15 bits + sign bit Maximum pressure/current resistance ±35 V/±40 mA Smooth None, weak, medium or strong Noise suppression 400,60,50 or 10 Hz Impedance ≥9MQ(Voltage)/≥270Ω,
