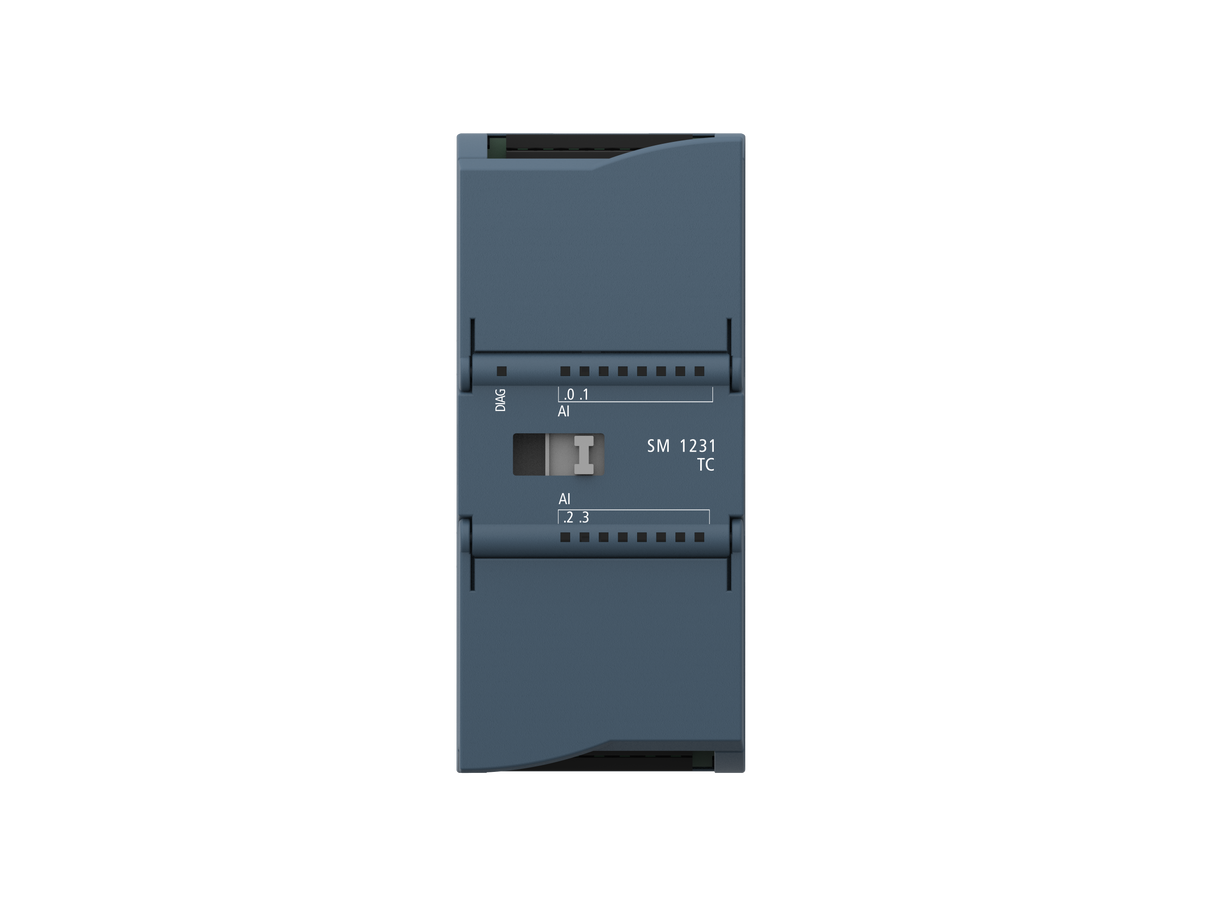

UN 231-5QD32-0XB0

Model SM 1231Al4×16 bits TC Order number UN 231-5QD32-0XB0      General Dimension W x H x D ( mm ) 45×100×75                                                                                                                            Weight 180 g Power consumption 1.5 W Current consumption (SM bus) 80 mA Current consumption (24 VDC) 40 mA Analog input Number of input channels 4                        Type TC Range J,K,T,E,R,S,B,N,C,TXK/XK(L), Voltage range: +/-80 mv Resolution Temperature Resistance 0.1ºC/0.1F 15 bits + sign bit Maximum withstand voltage ±35 V Noise suppression 85 dB,10 Hz/50 Hz/60 Hz/400 Hz Common mode rejection >120 dB at 120VAC                                      Impedance ≥10 MQ IsolationField side and logic sideOn-site side and 24VDC side24 V DC side and logic side 707V DC(Type test) Channel-to-channel isolation 120VAC                                               Repeatability ±0.05 %FS Measurement principle Integral Cold junction error ±1.5 ºC Cable length (meter) Maximum length to sensor 100 m Cable resistance Max 100Q                                          Diagnosis Overflow/Underflow √ Break circuit √ 24V DC low voltage √
