Unimat
UniMAT
UN 231-5QF32-0XB0
SKU:
495d6ebc2d3d
En Stock

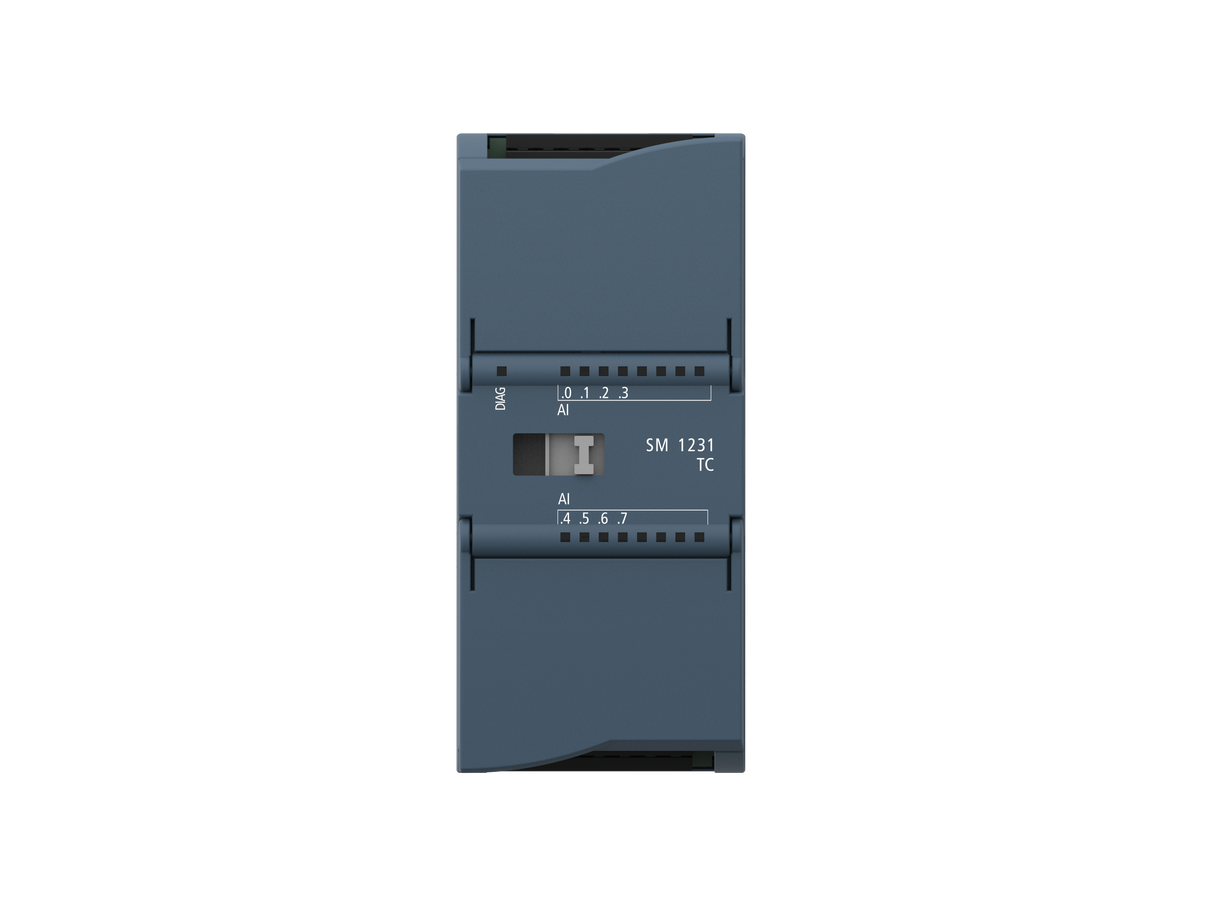

SM 1231 Analog input 1200PLC Module which is similar as Siemens S7-1200 PLC1) SM 1231 8TC 16-bit resolution2) Compatible with Siemens UN231-5QF32-0XB0;3) Analog module;4) Could connect with Siemens 1200 CPU and Modules;5) 3-year warranty;6) 2-3 working days after payment can ship;7) Material: ABS, IC
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Model SM1231Al8×16 bits TC Order number UN 231-5QF32-0XB0 General Dimension W x H x D ( mm ) 45×100×75 Weight 190 g Power consumption 1.5 W Current consumption (SM bus) 80 mA Current consumption (24 VDC) 40 mA Analog input Number of input channels 8 Type TC Range J,K,T,E,R,S,B,N,C,TXK/XK(L),Voltage range: +/-80 mv ResolutionTemperatureResistance 0.1ºC/0.1F 15 bits + sign bit Maximum withstand voltage ±35 V Noise suppression 85 dB,10 Hz/50 Hz/60 Hz/400 Hz Common mode rejection >120 dB at 120VAC Impedance ≥10 MQ IsolationField side and logic sideOn-site side and 24VDC side24 V DC side and logic side 707V DC(Type test) Channel-to-channel isolation 120VAC Repeatability ±0.05 %FS Measurement principle Integral Cold junction error ±1.5 ºC Cable length (meter) Maximum length to sensor 100 m Cable resistance Max 100Q Diagnosis Overflow/Underflow √ Break circuit √ 24V DC low voltage √
No hay especificaciones técnicas disponibles.
