UN 232-4HB32-0XB0

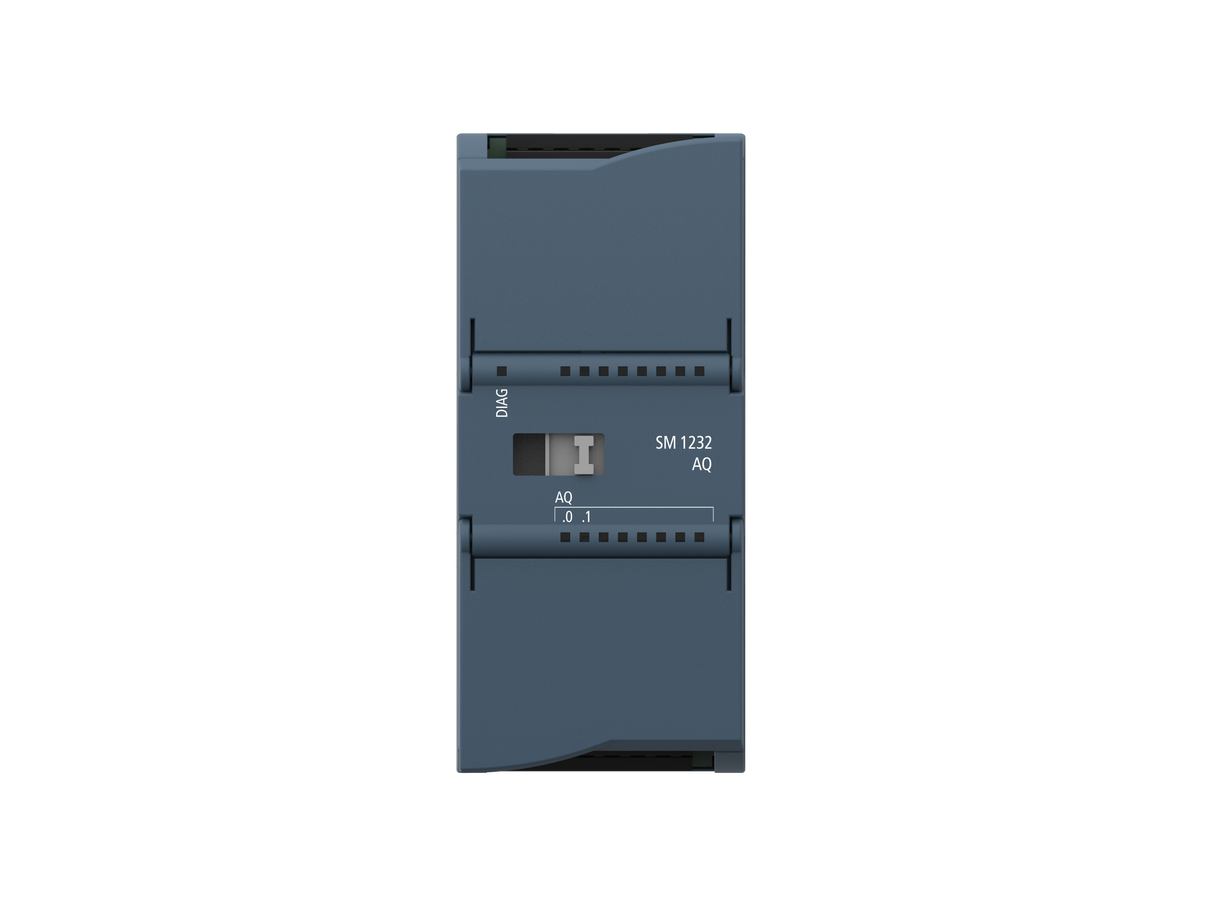

Model SM 1232 AQ 2x14bit Order number                                                                                                         General dimension W x H x D ( m m ) 45x100x75                                                                          weight 180g Power consumption 1.8W                                                                                           Current consumption (SM bus) 80 mA Current consumption (24VDC) 45mA(no load)                                                Analog output Number of output channels 2                                                                                                    Type Voltage or current Range ±10V, 0-20 mA or 4-20 mA Resolution Voltage:14 bits; Current: 13 bits Full scale range (data word) Voltage; -27,648-27,648;Current:0-27,648 Accuracy (25ºC/0-55ºC) ±0.3%±0.6% of full scale Stabilization time (95% of new value) Voltage:300μS(R),750μS(1uF);Current:600μS(1mH),2ms(10mH) Load impedance Voltage:≥1000Q;Current:≤600Ω Behavior during RUN-STOP Previous value or replacement value (default value is 0) Isolation (field side and logic side) None Cable length (meter) 100 meters, shielded twisted pair Diagnosis Overflow/Underflow √                                                                                      Short circuit to ground (voltage  only) √   Open circuit (current mode only) √                                                                                             24VDC low voltage √
