UN 234-4HE32-0XB0

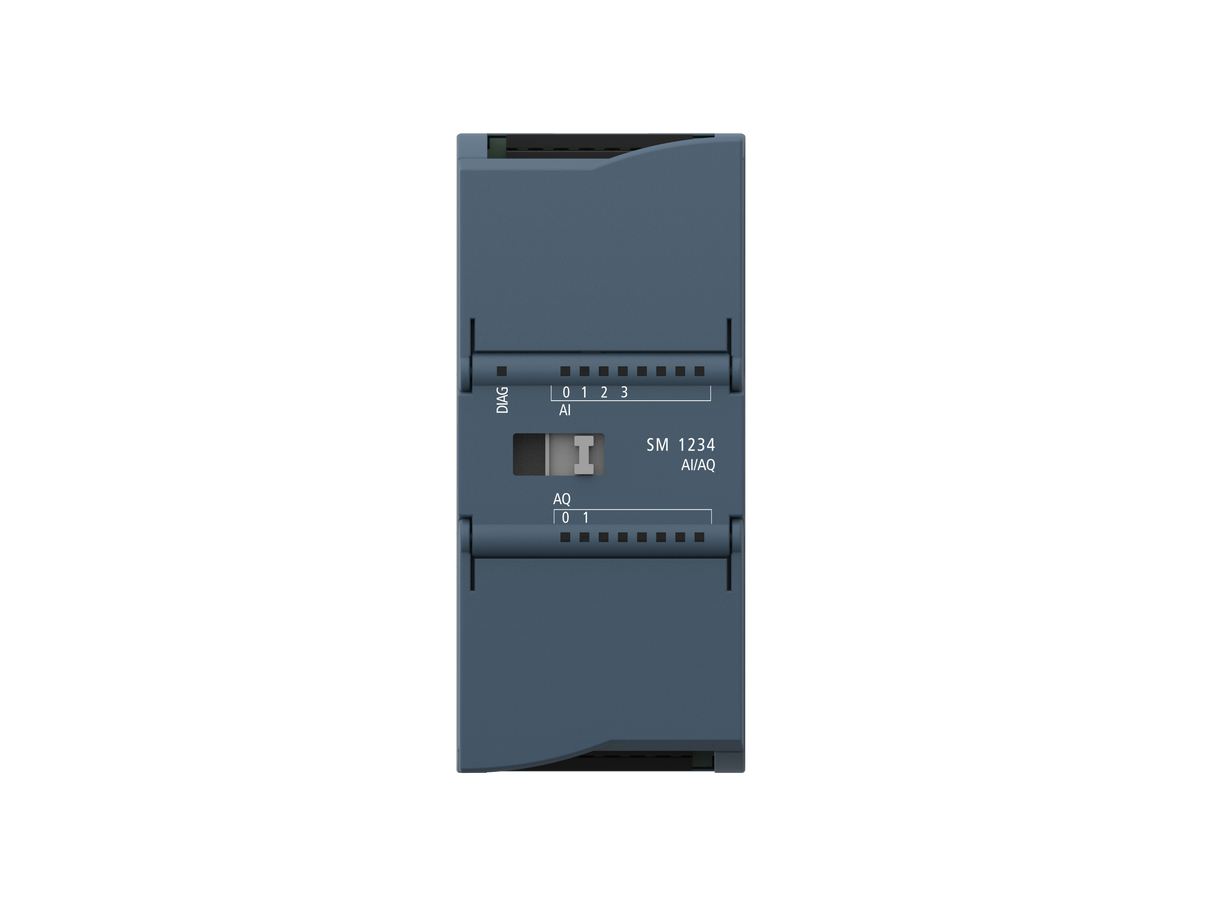

SM 1231 Analog input/output 1200PLC Module which is similar as Siemens S7-1200 PLC1) SM 1234 Analog input/output 4AI/2AO2) Compatible with Siemens 6es7 234-4HE32-0XB03) Analog module;4) Could connect with Siemens 1200 CPU and Modules;5) 3-year warranty;6) 2-3 working days after payment can ship;7) Material: ABS, ICAnalog to digital conversion timeCommon mode rejection40dB,DC-60 HzWorking signal rangeThe signal plus common mode voltage must be less than +12V and greater than -12VCable length (meter)100 meters, shielded twisted pairAnalog outputNumber of output channels2TypeRange±10V,0-20mAor4-20mAAccuracyVoltage: 14 bits; Current: 13 bitsFull scale range (data word)Voltage: -27,648-27,648; Current: 0-27,648Accuracy(25ºC/0-55ºC)±0.3‰±0.6% of full scaleStabilization time (95% of new value)Voltage:300μS(R),750μS(1uF),Current:600μS(1mH),2ms(10mH)Load impedanceVoltage: ≥1000Ω; Current: ≤600ΩBehavior during RUN-STOPPrevious value or replacement value (default value is 0)Isolation (field side and logic side)NoneCable length (meter)100 meters, shielded twisted pairDiagnosisOverflow/underflow√Short circuit to ground (voltage mode only)The output terminal hasOpen circuit (current mode onlyThe output terminal has24VDC low voltage√
