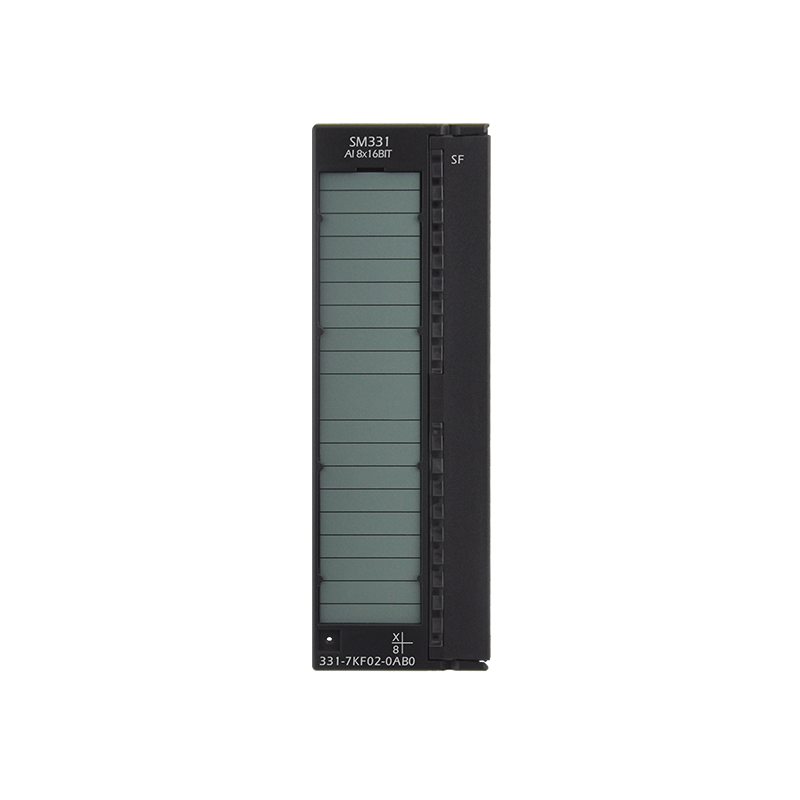

UN 331-7KF02-0AB0

Name: UN 331-7KF02-0AB0
Brand: Unimat
Availability: InStock

SKU: 54da85ba5771

En Stock

DescriptionSM 331 8AI temperature measurement 300 PLC PT100 RTD1) SM331 8AI;2) Compatible with Siemens 6ES7331-7KF02-0AB0;3) Analog expansion input module;4) Could connect with Siemens 300 CPU;5) 3- year warranty;6) Delivery time: 2-3 working days after payment.ModelSM3318AIProduct Description8AI;Full-function temperature measurement modules; Resolution: 16bits;Short-circuit protection; High immunityPower consumption@ Rate value24V DC@ From backplane bus current consumption100mA@ From L+25mA@ Power loss1WThe power of transmitter@ Supply currentPer channel (Max): 60mA@ short-circuit protectionYesNumber of analoginputs8Cable Length(Shielded)200mMax. For 80mV: 50mInput type and input range@ voltage± 80mV, ± 250mV,± 500mV, ± 1V, ± 2.5V ± 5V, 1~5V, ± 10V@ current(4wire)± 3.2mA, ± 10mA, ± 20mA, 4~20mA@ current(2wire)4~20mA@ tesistance600Ω , 300Ω , 150Ω ,@ thermocoupleK, J, N, E, L@ RTDPt100, Ni100A/D resolution16bitsBasic conversion time(per channel)0.5ms/125ms/25ms/100msInterference frequency suppression400/50/60/10HzTolerance(Over entire temperature range)@ Voltage± 0.6%@ Current± 0.6%@ resistance± 0.6%@ temperature± 1CInterruptsDiagnostic interruptPer group Yes, ConfigurableLimit-value interruptYes, ConfigurableIsolation tested for contact@ Between channelsNone@ Between channels and backplane buYesFront connector20-pinDimensions(W x H x D)(mm)40× 125× 120Order NumberUN 331-7KF02-0AB0

Cantidad:

Cotizar Ahora

¿Necesitas más información?

Nuestro equipo técnico está listo para ayudarte con cualquier consulta.

Contactar Asesor Llamar Ahora

UN300 digita module 1 SM321 16DI,DC 24V, NPN UN 321-1BH02-0AA0 2 SM321 32DI,DC 24V UN 321-1BL00-0AA0 3 SM322 16DO,DC 24V 0.5A UN 322-1BH01-0AA0 4 SM322 16DO,Relay 2A UN 322-1HH01-0AA0 5 SM322 32DO,DC 24V 0.5A UN 322-1BL00-0AA0 6 SM323 16DI/16DO 24VDC/24VDC 0.5A UN 323-1BL00-0AA0 UN300 analog modul 1 SM331 8AI,current/voltage/RTD UN 331-1KF02-0AB0 2 SM331 8AI,current/voltage/RTD/TC UN 331-7KF02-0AB0 3 SM331 8RTD, UN 331-7PF01-0AB0 4 SM331 8TC, UN 331-7PF11-0AB0 5 SM332 4AO, 12 bits UN 332-5HD01-0AB0 6 SM332 8AO, 12 bits UN 332-5HF00-0AB0 7 ET200M,IM153-1 UN 153-1AA03-0XB0 UN300 Communication Module 1 CP 341 RS485/422 Modbus Communication Module UN 341-1CH02-0AE0 2 Ethernet to MPI converter UN 972-0CE20-0XA0 UN300 adapter 1 MPIconnect HMI adapter UN 972-0CA23-0XA0 2 USB-MPI/DP adapter UN 972-0CB20-0XA0 UN Acessory 1 DIN Rail 160mm UN 390-1AB60-0AA0 2 DIN Rail 320mm UN 390-1AD20-0AA0 3 DIN Rail 482mm UN 390-1AE80-0AA0 4 DIN Rail 530mm UN 390-1AF30-0AA0 5 DIN Rail 830mm UN 390-1AJ30-0AA0 9 20-pin front connector UN 392-1AJ00-0AA0 10 40-pin front connector UN 392-1AM00-0AA0 11 900 bus connector for Profibus w/o program port UN 972-0BA12-0XA0 12 900 bus connector for Profibus w/ program port UN 972-0BB12-0XA0 13 900 bus connector for Profibus w/o program port, instant connection UN 972-0BA50-0XA0 14 900 bus connector for Profibus w/ program port, instant connection UN 972-0BB50-0XA0 15 450 bus connector for Profibus w/o program port UN 972-0BA41-0XA0 16 450 bus connector for Profibus w/ program port UN 972-0BB41-0XA0 17 Profibus cable UN 830-0EH10 18 PS307 Power Supply for CPU, 5A UN 307-1EA00-0AA0 19 PS307 Power Supply for CPU, 10A UN 307-1KA01-0AA0

No hay especificaciones técnicas disponibles.
