Unimat
UniMAT
UN 332-5HD01-0AB0
SKU:
943f3bae35f6
En Stock

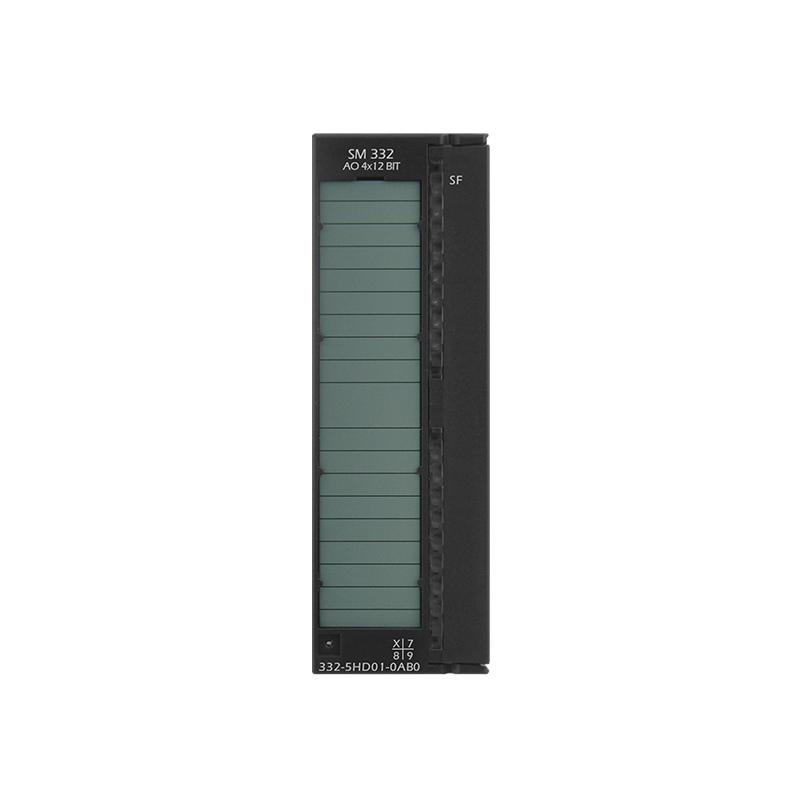

SM332 4 Analog Module 300 series PLC equivalent of Siemens S7 - 3001). SM332 4AO , ;2). Compatible with Siemens 6ES7332-5HD01-0AB0 ;3). Analog Output module ;4). Could connect with Siemens 300 CPU ;5). 3-year warranty ;
¿Necesitas más información?
Nuestro equipo técnico está listo para ayudarte con cualquier consulta.
Model SM3324AO Product Description 4AO; Resolution: 12bits;High-accuracy Power consumption @ From bus current consumption 40mA @ From L+ 40mA @ Power loss 3W Number of analogoutputs 4 Load voltage+rated value 24V Shielded cable length, Max 200m Voltage output,Max, short circuit Current Yes Voltage output,Short circuit current(Max) 25mA Voltage output,Open-circuit current, Max 18V Load impedance @ Voltage outputs, Min 1KΩ @ current outputs, Max 500Ω Output ranges @ voltage ± 10V, 0~10V, 1~5V @ current ± 20mA, 0~20mA, 4~20mA D/A resolution 12bit conversion time(per channel) Max: 0.8ms Setting time @ Resistive loads 0.1ms @ Capacitive loads 3.3ms @ Inductive loads 0.5ms Output cross talk > 40dB Tolerance(Over entire temperature range) @ Voltage output ± 0.5% @ Current output ± 0.6% Diagnostic interrupt None Group fault error Red LED Isolution tested for contact @ Between channels and backplane bus Yes @ Between channels and load voltage L+ Yes Front connector 20-pin Dimensions(W x H x D)(mm) 40× 125× 120 Order Number UN 332-5HD01-0AB0
No hay especificaciones técnicas disponibles.
