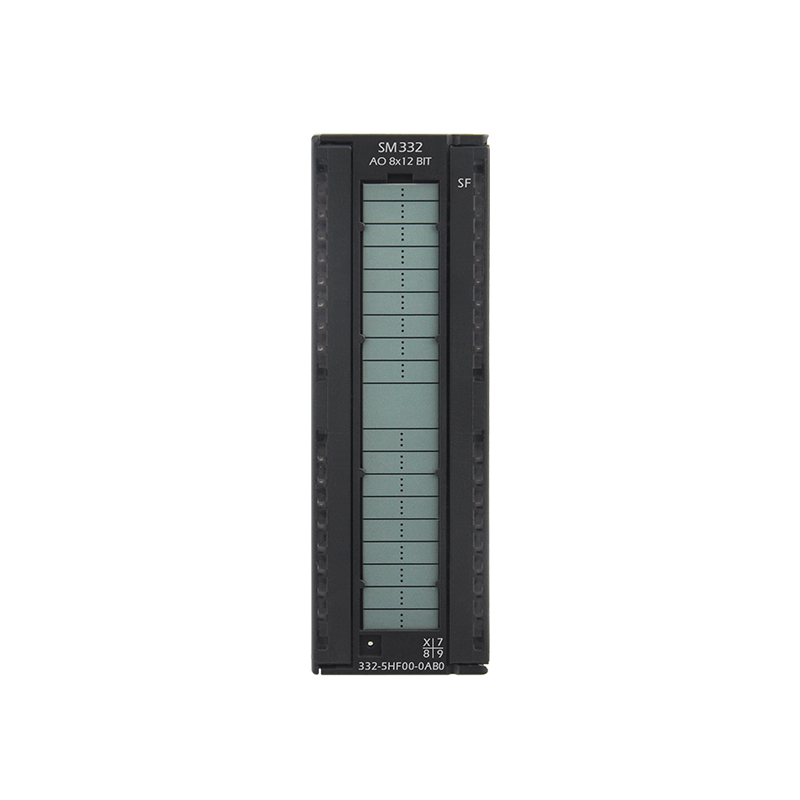

UN 332-5HF00-0AB0

Model SM3324AO SM3328AP Product  Description 4AO;Resolution:12bits;High-accuracy Support wide range of environment temperature Tolerance:Voltage output:±0.5%,Current output:±0.6% 8AO;Resolution:12bits;High-accuracy Support wide range of environment temperature Tolerance:Voltage output:±0.5%,Current output:±0.6% Power consumption @ From bus current consumption 40mA 100mA @ From L+ 40mA 70mA @ Power loss 3W 6W Number of analog outputs 4 8 Load voltage+rated value 24V 24V Shielded cable length, Max 200m 200m Voltage output,  Yes Yes  Max, short circuit Current      Voltage output,  25mA 25mA Short circuit current(Max)     Voltage output,  18V 18V Open-circuit current, Max  Load impedance   @ Voltage outputs, Min  1KΩ 1KΩ @ current outputs, Max  500Ω  500Ω  Output ranges     @ voltage  ± 10V, 0~10V, 1~5V  ± 10V, 0~10V, 1~5V  @ current  ± 20mA, 0~20mA, 4~20mA  ± 20mA, 0~20mA, 4~20mA  D/A resolution  12bit  12bit  conversion time(per channel)  Max: 0.8ms  Max: 0.8ms  Setting time     @ Resistive loads 0.1ms 0.1ms @ Capacitive loads 3.3ms 3.3ms @ Inductive loads 0.5ms 0.5ms Output cross talk  > 40dB > 40dB  Tolerance(Over    entire temperature range)     @ Voltage output ± 0.5% ± 0.5% @ Current output  ± 0.6%  ± 0.6%  Diagnostic interrupt  None  None  Group fault error Red LED Red LED Isolution tested for contact     @ Between channels and backplane bus Yes Yes @ Between channels and load voltage L+ Yes Yes Front connector 20-pin 40-pin Dimensions(WxHxD)(mm) 40× 125× 120 40× 125× 120 Order Number UN332-5HD01-0AB0 UN 332-5HF00-0AB0
